VULCAN - OD163259

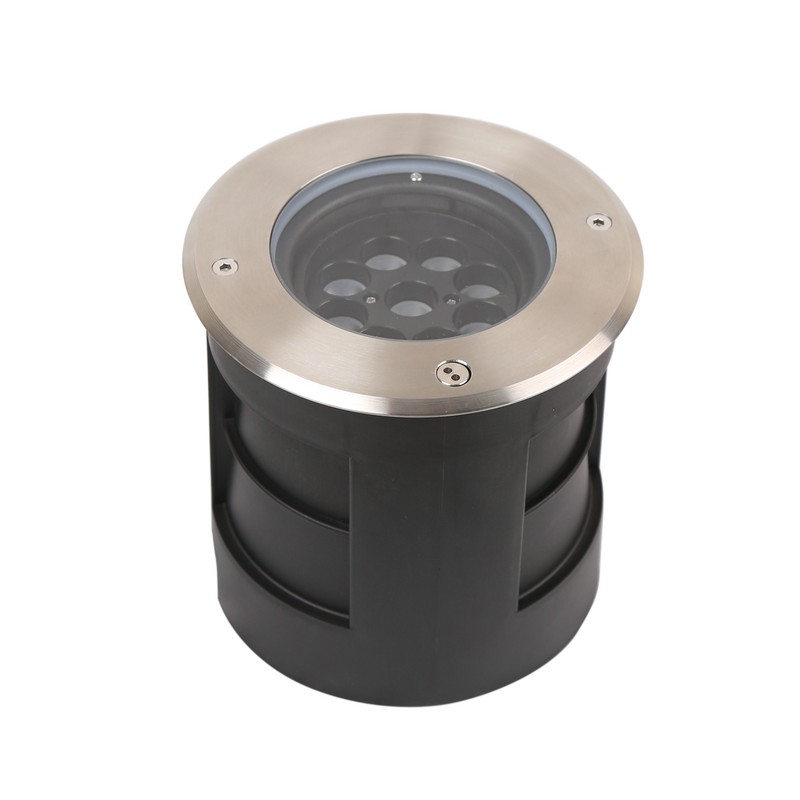

Modular IP67 SMD Recessed Adjustable Wallwasher as the perfect choice for demanding commercial and public outdoor environments.
Corrosion-resistant aluminium body with 316L stainless steel bezel, A4 stainless steel screws and clear tempered glass diffuser (1.500kg load) with salt-spray protection.
30° adjustable via retractable external knob — no need to open the luminaire after installation.

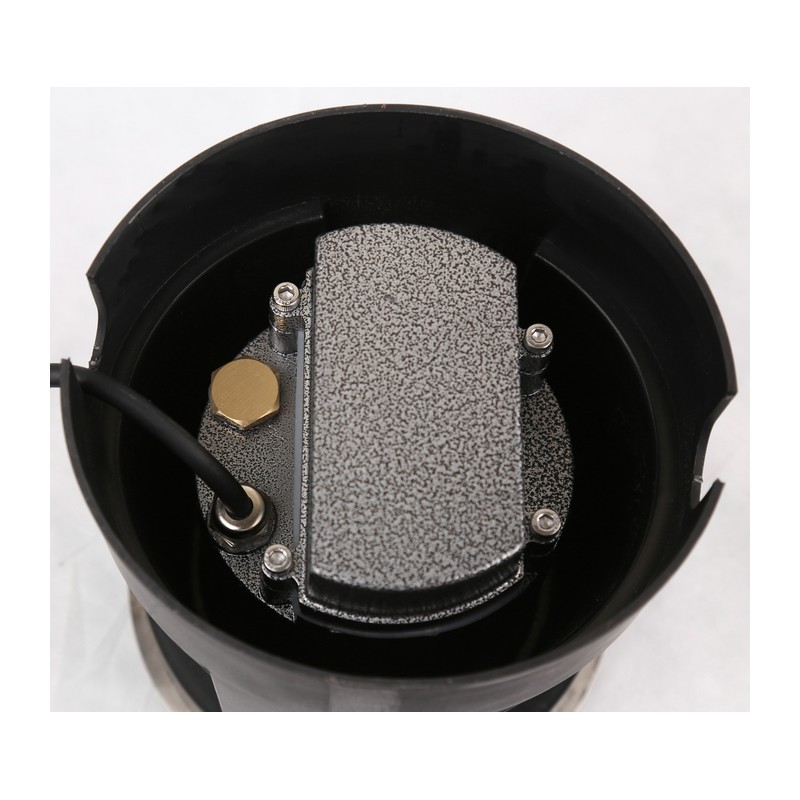

Supplied with integrated non-dimmable driver and pre -wired 1m H05Rn-F rubber cable for safe and secure installation in outdoor applications.
Designed for ambient temperatures from –30 °C to +45 °C.
Corrosion-resistant aluminium body with 316L stainless steel bezel, A4 stainless steel screws and clear tempered glass diffuser (1.500kg load) with salt-spray protection.
30° adjustable via retractable external knob — no need to open the luminaire after installation.
Supplied with integrated non-dimmable driver and pre -wired 1m H05Rn-F rubber cable for safe and secure installation in outdoor applications.
Designed for ambient temperatures from –30 °C to +45 °C.
OD163259
Data sheet
- Power (watts)
- 19
- Colour temperature
- 3000
- Lumens (lm)
- 1520
- Width (mm)
- 0
- Height (mm)
- 190
- Depth (mm)
- 0
- Cutout diameter (mm)
- 170
- Product Diameter (mm)
- 180
- Warranty (years)
- 5
- Type of use
- Outdoor
- Mount Options
- Recessed
- Positional adjustment
- Swivelling
- Protection class
- G
- CRI
- 80
