Bulkheads

Colour Switchable IP65 Asymetrical Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution. Perfect for demanding wall and ceiling installations.
3 Colour Selections available for ultimate flexibility in every application.
IP65 rated rear entry access wiring compartment enable quick and simple through-wiring and product installation.
Suitable for ambient temperatures from -20°C to +45°C.

Colour & Wattage Switchable IP65 Die-Cast Aluminium Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution.
4 Wattage and 3 Colour Selections available for ultimate flexibility in every application.
IP65 rated side and rear entry access wiring compartment enable quick and simple through-wiring and product installation.
IK10 polycarbonate diffuser and Die Cast aluminium housing vandal-proof.

Colour & Wattage Switchable IP65 Die-Cast Aluminium Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution.
4 Wattage and 3 Colour Selections available for ultimate flexibility in every application.
IP65 rated side and rear entry access wiring compartment enable quick and simple through-wiring and product installation.
IK10 polycarbonate diffuser and Die Cast aluminium housing vandal-proof.
Microwave Sensor version with adjustable daylight harvesting. Function (25lux/off), 108° detection range up to 4 meter and hold time configurations from 5 seconds to 10 minutes available.

Colour & Wattage Switchable IP66 Modular Plug & Play Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution.
Designed for modular plug and play product extension and maintenance. Plug-ready sensors, emergency kit, maintainable driver and light-engine available.
Integrated sensor base enables tool-free upgrade with either a microwave sensor for motion detection or a microwave sensor with corridor function for presence, daylight harvesting, and configurable hold time and light output control. 108° detection range up to 4 m.
IP66 rated rear and side entry access wiring compartment enable quick and simple through-wiring and product installation.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from –25 °C to +45 °C.

Colour & Wattage Switchable IP66 Modular Plug&Play Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution.
Designed for modular plug and play product extension and maintenance. Plug-ready sensors, emergency kit, maintainable driver and light-engine available.
Integrated sensor base enables tool-free upgrade with either a microwave sensor for motion detection or a microwave sensor with corridor function for presence, daylight harvesting, and configurable hold time and light output control. 108° detection range up to 4 m.
IP66 rated rear and side entry access wiring compartment enable quick and simple through-wiring and product installation.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from -25°C to +45°C.

Colour & Wattage Switchable IP66 Modular Plug&Play Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution.
Designed for modular plug and play product extension and maintenance. Plug-ready sensors, emergency kit, maintainable driver and light-engine available.
Integrated sensor base enables tool-free upgrade with either a microwave sensor for motion detection or a microwave sensor with corridor function for presence, daylight harvesting, and configurable hold time and light output control. 108° detection range up to 4 m.
IP66 rated rear and side entry access wiring compartment enable quick and simple through-wiring and product installation.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from -25°C to +45°C.

Colour & Wattage Switchable IP66 Modular Plug&Play Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution.
Designed for modular plug and play product extension and maintenance. Plug-ready sensors, emergency kit, maintainable driver and light-engine available.
Integrated sensor base enables tool-free upgrade with either a microwave sensor for motion detection or a microwave sensor with corridor function for presence, daylight harvesting, and configurable hold time and light output control. 108° detection range up to 4 m.
IP66 rated rear and side entry access wiring compartment enable quick and simple through-wiring and product installation.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from -25°C to +45°C.

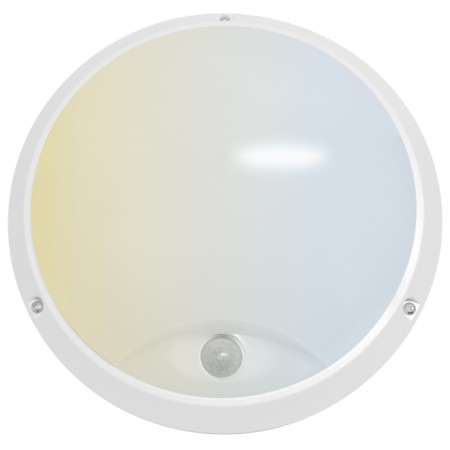

Colour and wattage Switchable IP65 Bulkhead with integrated PIR sensor and opal polycarbonate IK10 diffuser for even and uniform light distribution provides best energy saving.
Integrated infrared detector sensor with daylight harvesting feature. When people enter its detection range and triggers, lights turn on. When people leave its detection area, the light will automatically turn off. Ambient illumination <10Iux-2000Iux adjustable, delay time 10s - 10min.
3 Colour Selections (3000K/3500K/4000K) available for ultimate flexibility in every application.
IP65 rated rear entry access wiring compartment enables quick and simple product installation.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from -25°C to +45°C.

IP65 18W Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution offer best value for money.
IP65 rated rear and side entry access wiring compartment enable quick and simple through-wiring and product installation.
Microwave Sensor version with daylight harvesting feature, 110° detection range up to 4 meter and adjustable hold time configurations from 5 seconds to 30 minutes available.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from -25°C to +45°C.

IP65 18W Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution offer best value for money.
IP65 rated rear and side entry access wiring compartment enable quick and simple through-wiring and product installation.
Microwave Sensor version with daylight harvesting feature, 110° detection range up to 4 meter and adjustable hold time configurations from 5 seconds to 30 minutes available.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from -25°C to +45°C.

Colour & Wattage Switchable IP65 Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution. Integrated Microwave Sensor for enhanced energy saving.
3 Wattage and 3 Colour Selections available for ultimate flexibility in every application.
IP65 rated rear and side entry access wiring compartment enable quick and simple through-wiring and product installation.
Microwave Sensor version with daylight harvesting feature, 110° detection range up to 4 meter and adjustable hold time configurations from 5 seconds to 30 minutes available.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from -25°C to +45°C.

Colour & Wattage Switchable IP65 Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution. Integrated Microwave Sensor for enhanced energy saving.
3 Wattage and 3 Colour Selections available for ultimate flexibility in every application.
IP65 rated rear and side entry access wiring compartment enable quick and simple through-wiring and product installation.
Microwave Sensor version with daylight harvesting feature, 110° detection range up to 4 meter and adjustable hold time configurations from 5 seconds to 30 minutes available.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from -25°C to +45°C.
