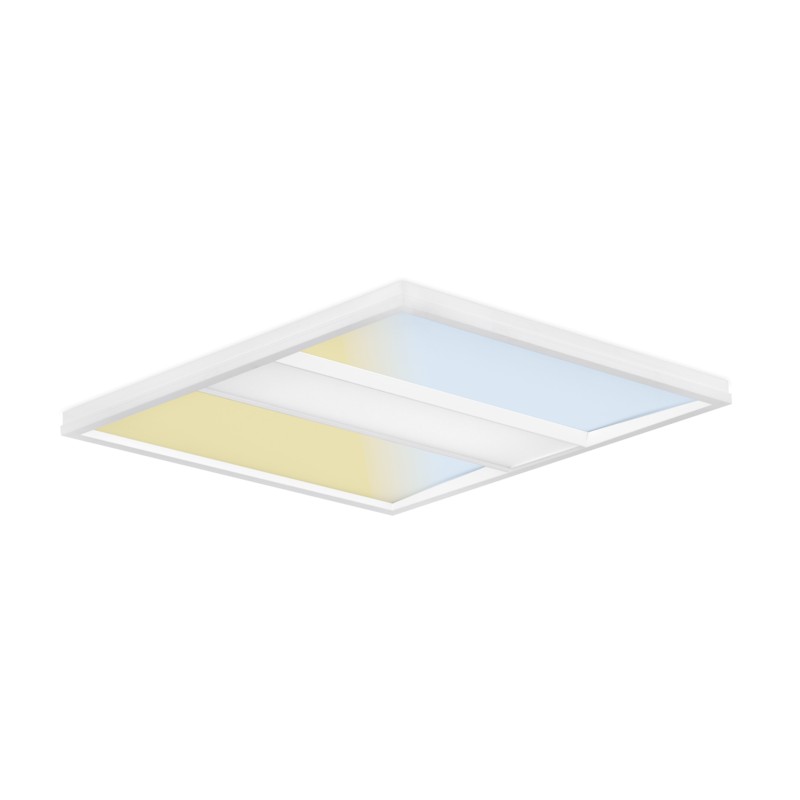

TrofferCWS - LP155803

TrofferCWS - LP155803

TrofferCWS - LP155803

Colour & Wattage Switchable high-efficiency (120Im/W) LED TrofferPanel uses edge-lit technology to replicate the appearance of traditional direct/indirect luminaires.
Microprismatic diffuser (UGR<19) significantly reduces glare and enhances visual comfort which makes the Troffer Panel ideal for a wide range of commercial applications, including schools and offices.
Flicker-free non-dimmable LED driver pre-wired for simplified and fast installation. 1.2m safety cable included.
2 Wattage and 2 Colour Selections available for ultimate flexibility in every application.

Reference LP155803

Data sheet

Power (watts): 25/36
Dimmable: No
Colour temperature: 3000/4000
Lumens (lm): 3000-4320
Lumens (lm/w): 120
Width (mm): 622
Height (mm): 49
Depth (mm): 622
Warranty (years): 5
Type of use: Indoor
Mount Options: Recessed
Positional adjustment: Fixed
Lifetime class: L80
Lifetime class hours: 50000
IP Rating: IP20
IK Rating: IK02
CRI: 80
UGR rating: 19

Download

lp155803_ldt.zip

Download (39.49KB)

troffercws_install_guide.pdf

Download (946.9KB)

lp155803_datasheet_en.pdf

Download (289.61KB)
