Spheral - BH150433

Spheral - BH150433

Spheral - BH150433

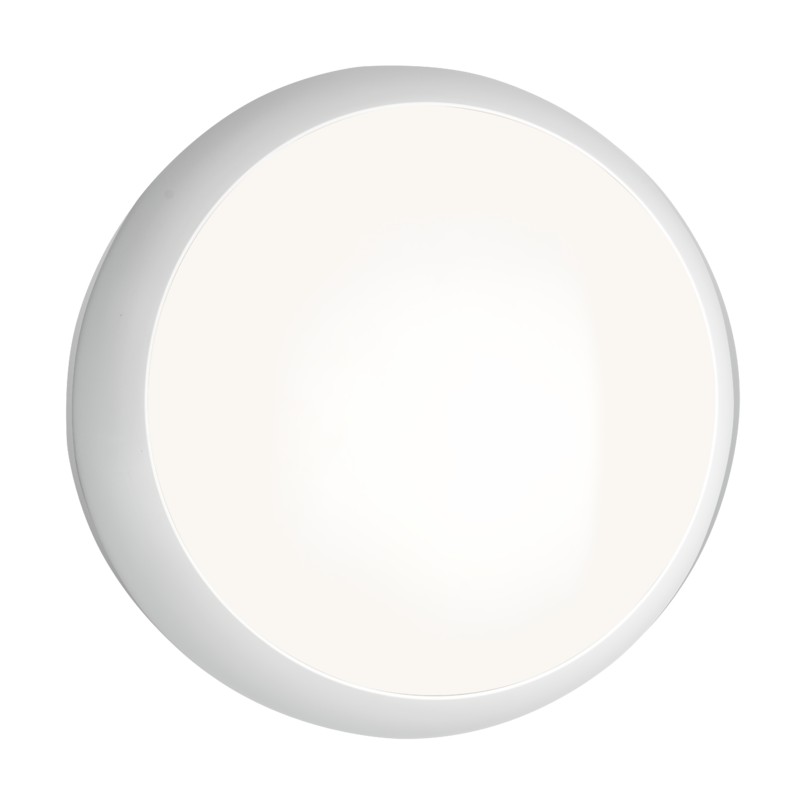

IP65 18W Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution offer best value for money.
IP65 rated rear and side entry access wiring compartment enable quick and simple through-wiring and product installation.
Microwave Sensor version with daylight harvesting feature, 110° detection range up to 4 meter and adjustable hold time configurations from 5 seconds to 30 minutes available.
Suitable for ambient temperatures from -20°C to +45°C.

Reference BH150433

Data sheet

Power (watts): 18
Dimmable: No
Colour temperature: 4000
Lumens (lm): 1800
Lumens (lm/w): 100
Colour (base): White
Height (mm): 78
Depth (mm): 78
Cutout diameter (mm): N/A
Product Diameter (mm): 330
Warranty (years): 5
Type of use: Indoor / Outdoor
Mount Options: Surface mounted / Wall mounted
Positional adjustment: Fixed
Lifetime class: L80
Lifetime class hours: 50000
IP Rating: IP65
IK Rating: IK10
Protection class: D
CRI: 80
UGR rating: 22

Download

bh150426_bh150433.pdf

Download (1.37MB)

bh150433_ldt.zip

Download (4.03KB)

bh150433_datasheet_en.pdf

Download (237.21KB)
