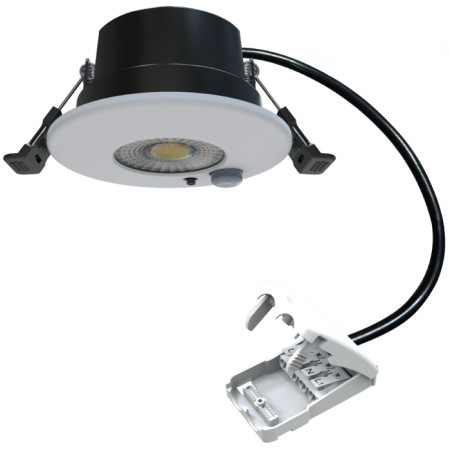

RT Sense - DL162030
Wattage -Switchable IP65/IP50 Integrated PIR Daylight Harvesting LED Downlight designed for maximized energy savings in recessed installations.
Integrated flicker-free LED driver enables installation in shallow ceiling voids with only 41mm recess depth. Operates in master-slave configuration with RT PRO CWS.
Edge -to-edge 60° multifaceted polycarbonate lens ensures low glare, high efficiency and a halogen-like appearance.
Colour switchable via dip switch on the front lens – adjustable even after installation. Magnetic IP65-rated bezels included.
Fully insulation-coverable and airtight to minimize energy loss. IP65 & Class II rated, suitable for wet environments (zone 2).
Individually programmable PIR sensor with light target selection for presence detection, daylight control or corridor function, supporting loads up to 200 W.
Integrated flicker-free LED driver enables installation in shallow ceiling voids with only 41mm recess depth. Operates in master-slave configuration with RT PRO CWS.
Edge -to-edge 60° multifaceted polycarbonate lens ensures low glare, high efficiency and a halogen-like appearance.
Colour switchable via dip switch on the front lens – adjustable even after installation. Magnetic IP65-rated bezels included.
Fully insulation-coverable and airtight to minimize energy loss. IP65 & Class II rated, suitable for wet environments (zone 2).
Individually programmable PIR sensor with light target selection for presence detection, daylight control or corridor function, supporting loads up to 200 W.
DL162030
Data sheet
- Power (watts)
- 6
- Colour temperature
- 2700/3000/4000
- Lumens (lm)
- 600
- Width (mm)
- 0
- Height (mm)
- 44
- Depth (mm)
- 0
- Cutout diameter (mm)
- 68
- Product Diameter (mm)
- 85
- Warranty (years)
- 5
- Type of use
- Indoor
- Mount Options
- Recessed
- Positional adjustment
- Fixed
- Protection class
- F
- CRI
- 80
