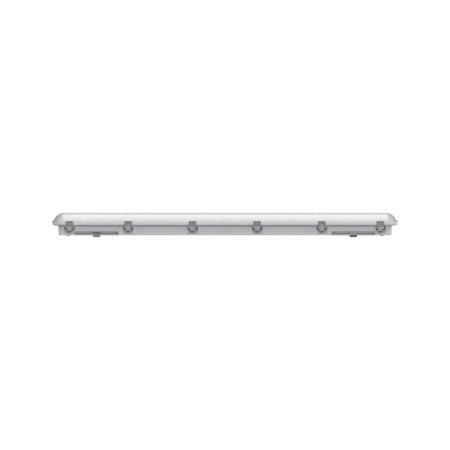

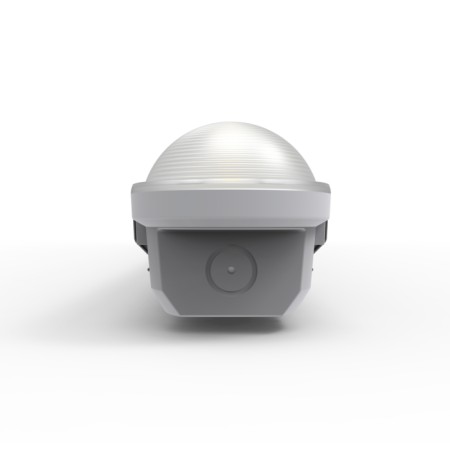

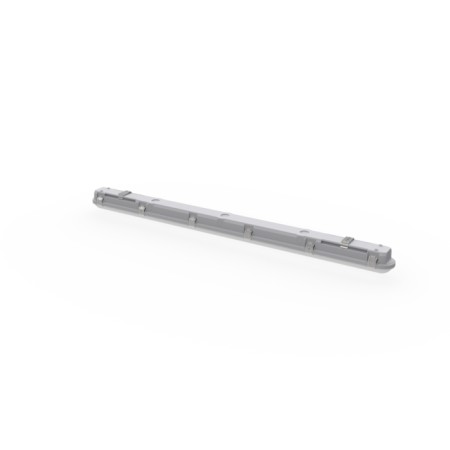

LINEARPAC CWS - AC156046
Colour & Wattage Switchable Modular High-Efficiency IP66 Corrosion-Resistant Linear Batten robust luminaire designed for the most demanding indoor and outdoor applications.
Fully modular design allows tool-free maintenance of the LED PCB and driver at end of lifetime, as well as plug-and-play extensions with microwave sensor, microwave sensor with dimming/corridor function, emergency kit with self-test, or DALI dimming driver.
IP66 rated with cable glands on both ends and rear entry for quick through-wiring via terminal blocks. IK08 polycarbonate diffuser and housing are vandal-proof, with 850° glow wire resistance. Suitable for ambient temperatures from –20 °C to +45 °C.
Quick-release hinged gear tray with durable 304 stainless steel anti-theft clips ensures fast installation and simplified maintenance. Once the base is secured, the diffuser simply clips into place. Cable gland, mounting/suspension bracket and anti-theft screws included.
Available with 3 wattage and 3 colour selections for maximum flexibility – the perfect retrofit solution for single and twin corrosion-resistant T8 fluorescent fittings.
Fully modular design allows tool-free maintenance of the LED PCB and driver at end of lifetime, as well as plug-and-play extensions with microwave sensor, microwave sensor with dimming/corridor function, emergency kit with self-test, or DALI dimming driver.
IP66 rated with cable glands on both ends and rear entry for quick through-wiring via terminal blocks. IK08 polycarbonate diffuser and housing are vandal-proof, with 850° glow wire resistance. Suitable for ambient temperatures from –20 °C to +45 °C.
Quick-release hinged gear tray with durable 304 stainless steel anti-theft clips ensures fast installation and simplified maintenance. Once the base is secured, the diffuser simply clips into place. Cable gland, mounting/suspension bracket and anti-theft screws included.
Available with 3 wattage and 3 colour selections for maximum flexibility – the perfect retrofit solution for single and twin corrosion-resistant T8 fluorescent fittings.
AC156046
Data sheet
- Power (watts)
- 24/34/40
- Colour temperature
- 3000/4000/6500
- Lumens (lm)
- 4320-7200
- Width (mm)
- 85
- Height (mm)
- 80
- Depth (mm)
- 1200
- Warranty (years)
- 5
- Type of use
- Indoor / Outdoor
- Mount Options
- Surface mounted / Suspended
- Positional adjustment
- Fixed
- Protection class
- B
- CRI
- 80
