HerculesCWS - BH150839

HerculesCWS - BH150839

HerculesCWS - BH150839

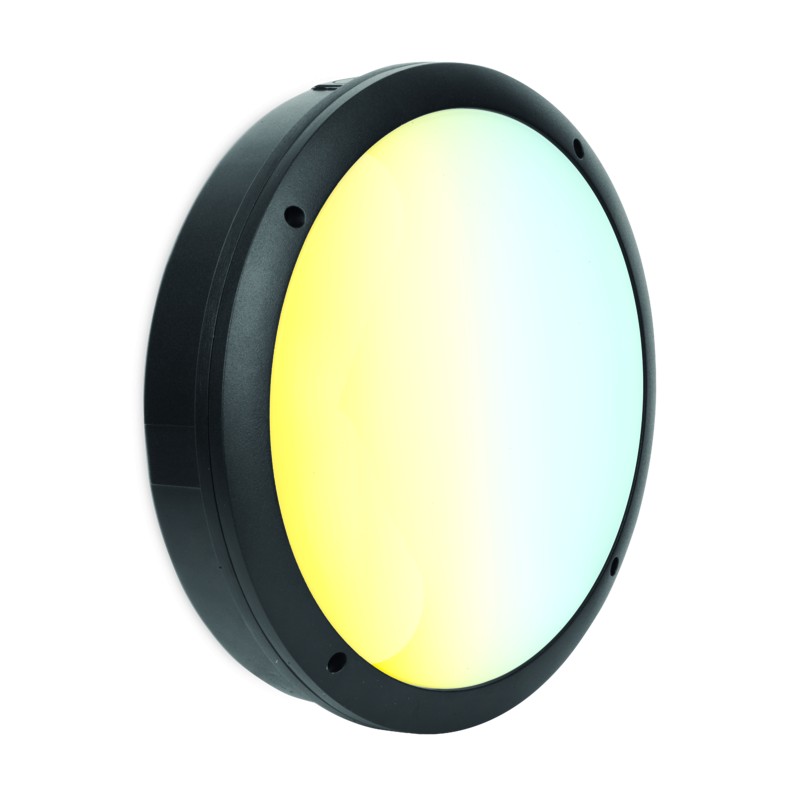

Colour & Wattage Switchable IP65 Die-Cast Aluminium Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution.
4 Wattage and 3 Colour Selections available for ultimate flexibility in every application.
IP65 rated side and rear entry access wiring compartment enable quick and simple through-wiring and product installation.
IK10 polycarbonate diffuser and Die Cast aluminium housing vandal-proof.
Microwave Sensor version with adjustable daylight harvesting. Function (25lux/off), 108° detection range up to 4 meter and hold time configurations from 5 seconds to 10 minutes available.

Reference BH150839

Data sheet

Power (watts): 14/15,5/17,5/18,5
Dimmable: No
Colour temperature: 3000/3500/4000
Lumens (lm): 1418-2120
Lumens (lm/w): 115
Colour (base): Black
Height (mm): 90
Cutout diameter (mm): N/A
Product Diameter (mm): 300
Warranty (years): 5
Type of use: Indoor / Outdoor
Mount Options: Surface mounted / Wall mounted
Positional adjustment: Fixed
Lifetime class: L80
Lifetime class hours: 50000
IP Rating: IP65
IK Rating: IK10
Protection class: D
CRI: 80
UGR rating: 22

Download

bh150822_bh150839.pdf

Download (995.65KB)

bh150839_ldt.zip

Download (40.81KB)

bh150839_datasheet_en.pdf

Download (260.86KB)
