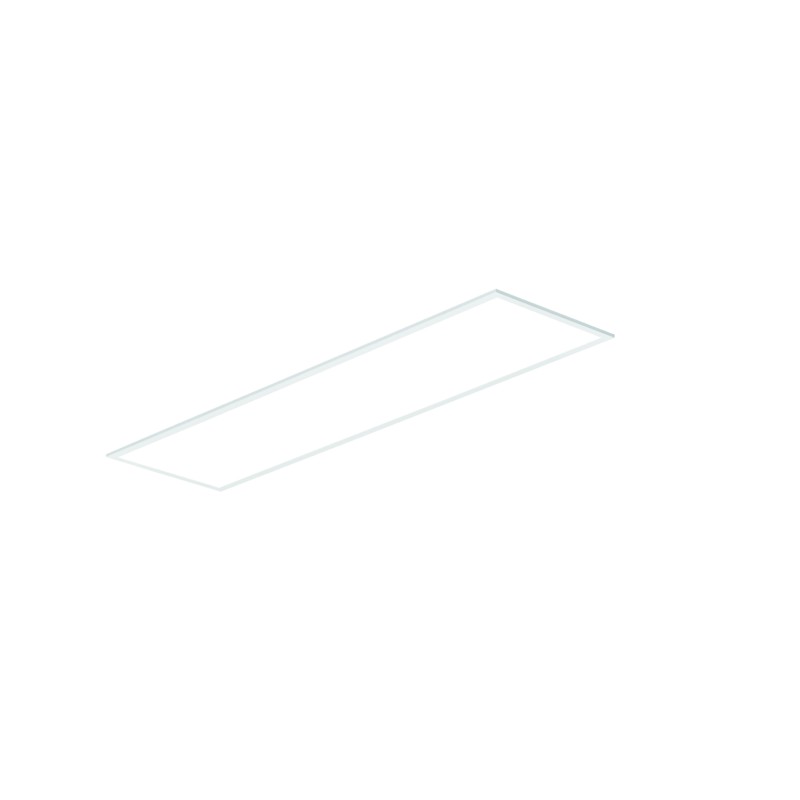

Edgelite - LP158668
IP54 Edge-lit LED Panel design with optical pattern PMMA light guide engineered for even and uniform light distribution.
Microprismatic diffuser provides excellent glare control with UGR <19.
Low profile product height of only 10mm enables installations in 15 and 24mm t-bar ceilings as well as ceiling suspension, surface mount or recess mount in plasterboard.
Flicker-free non-dimmable LED driver pre-wired for simplified and fast installation. Other driver options available upon request.
Edge-lit design and optical pattern light guide engineered for even light distribution.
Microprismatic diffuser provides excellent glare control with UGR <19.
Low profile product height of only 10mm enables installations in 15 and 24mm t-bar ceilings as well as ceiling suspension, surface mount or recess mount in plasterboard.
Flicker-free non-dimmable LED driver pre-wired for simplified and fast installation. Other driver options available upon request.
Edge-lit design and optical pattern light guide engineered for even light distribution.
LP158668
Data sheet
- Power (watts)
- 26
- Dimmable
- NON
- Colour temperature
- 4000
- Lumens (lm)
- 3400
- Lumens (lm/w)
- 130
- Colour (base)
- White
- Width (mm)
- 595
- Height (mm)
- 10
- Depth (mm)
- 1195
- Product Diameter (mm)
- 0
- Warranty (years)
- 5
- Type of use
- Indoor
- Mount Options
- Recessed / Suspended
- Positional adjustment
- Fixed
- Lifetime class
- L80
- Lifetime class hours
- 50000
- IP Rating
- IP54
- IK Rating
- IK07
- CRI
- 80
- UGR rating
- 19
