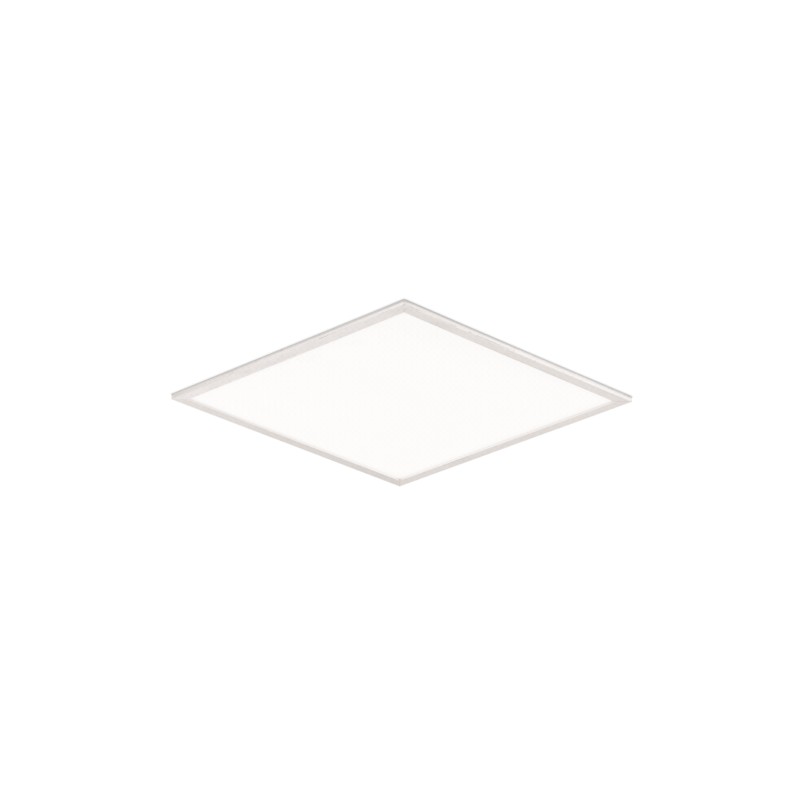

EDGELIT PRO - LP158644

IP54 Edge -lit LED Panel design with optical pattern PMMA light guide engineered for even and uniform light distribution.
Microprismatic diffuser provides excellent glare control with UGR <19.
Low profile product height of only 10mm enables installations in 15 and 24mm t-bar ceilings as well as ceiling suspension, surface mount or recess mount in plasterboard.
Flicker-free non-dimmable LED driver pre -wired for simplified and fast through-wiring installation. Safety cable according to EN60598 included.
Edge -lit design and optical pattern light guide engineered for even light distribution.

Product Details
Attachments

Reference LP158644

Data sheet

Power (watts): 26
Dimmable: NO
Colour temperature: 4000
Lumens (lm): 3400
Lumens (lm/w): 130
Colour (base): White
Width (mm): 595
Height (mm): 10
Depth (mm): 595
Product Diameter (mm): 0
Warranty (years): 5
Type of use: Indoor
Mount Options: Recessed / Suspended
Positional adjustment: Fixed
Lifetime class: L80
Lifetime class hours: 50000
IP Rating: IP54
IK Rating: IK07
CRI: 80
UGR rating: 19

Download

Suitable accessory

E-LUMI - DR159412

The DR159412 driver is a dimmable DALI-2 and PushDIM driver with adjustable constant current. It is supplied complete with a cable for connection to the luminaire.
Dimming range from 1 to 100%.
No flicker and smooth dimming in all light conditions.
Output current adjustment ( 10 levels ) by means of micro-switches.
Support CBS , central emergency application.
Independent cable clamps ( inlet / outlet ).

Driver 1-10V - DR159474

The DR159474 driver is a dimmable 1-10V driver with adjustable constant current. It is supplied complete with a cable for connection to the luminaire.
Dimming range from 5 to 100%.
No flicker and smooth dimming in all light conditions.
Output current adjustment ( 10 levels ) by means of micro-switches.
Support CBS , central emergency application.
Independent cable clamps ( inlet / outlet ).
