BeamVarioCS - RT158415

BeamVarioCS - RT158415

BeamVarioCS - RT158415

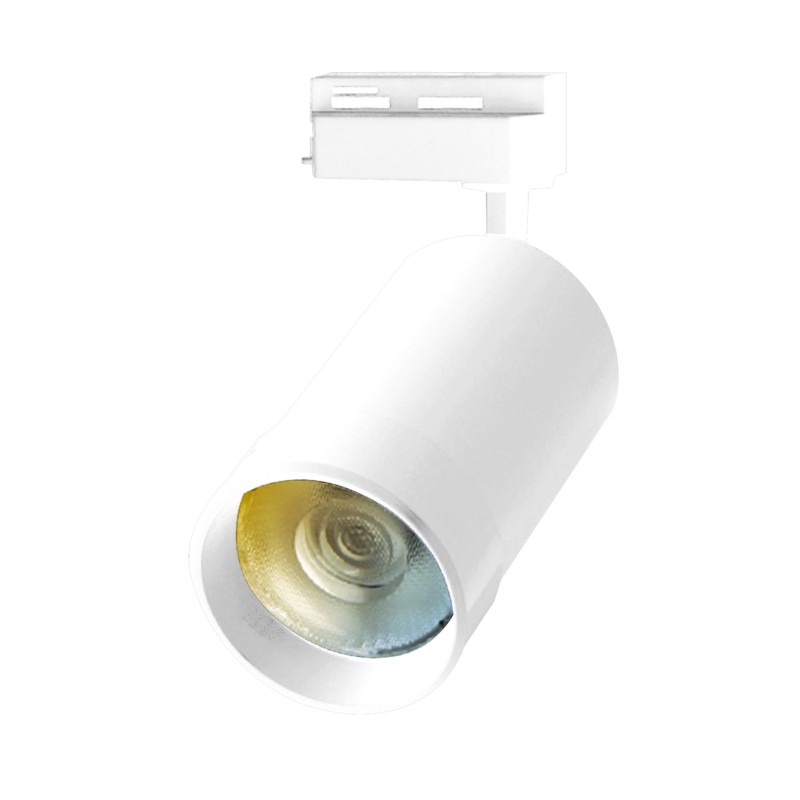

Colour Selectable single circuit track LED Spotlight with adjustable beam angle for maximal flexibility in retail environments.
Colour Switch located on back-site of Trackhead for simple adjustment of colour temperature between 2700K, 3200K and 4000K even after initial installation.
Beam angle adjustment and focusing through rotating front-cap between 60°, 38° and 24°. Different dial scale stand for individual aperture.
330° horizontal and 90° vertical adjustment to adapt to changing points of sales environments in stores.

Reference RT158415

Data sheet

Power (watts): 23
Dimmable: NON
Colour temperature: 2700/3200/4000
Lumens (lm): 2300-2600
Lumens (lm/w): 113
Colour (base): White
Height (mm): 140
Cutout diameter (mm): N/A
Product Diameter (mm): 84
Warranty (years): 3
Type of use: Indoor
Positional adjustment: Rotatable
Lifetime class: L80
Lifetime class hours: 15000
IP Rating: IP20
IK Rating: IK06
CRI: 80
UGR rating: 22

Download

rt158415_ldt.zip

Download (22.58KB)

rt158415_energy_label.pdf

Download (68.38KB)

beamvariocs_install_guide.pdf

Download (1.09MB)

rt158415_datasheet_en.pdf

Download (255.35KB)
