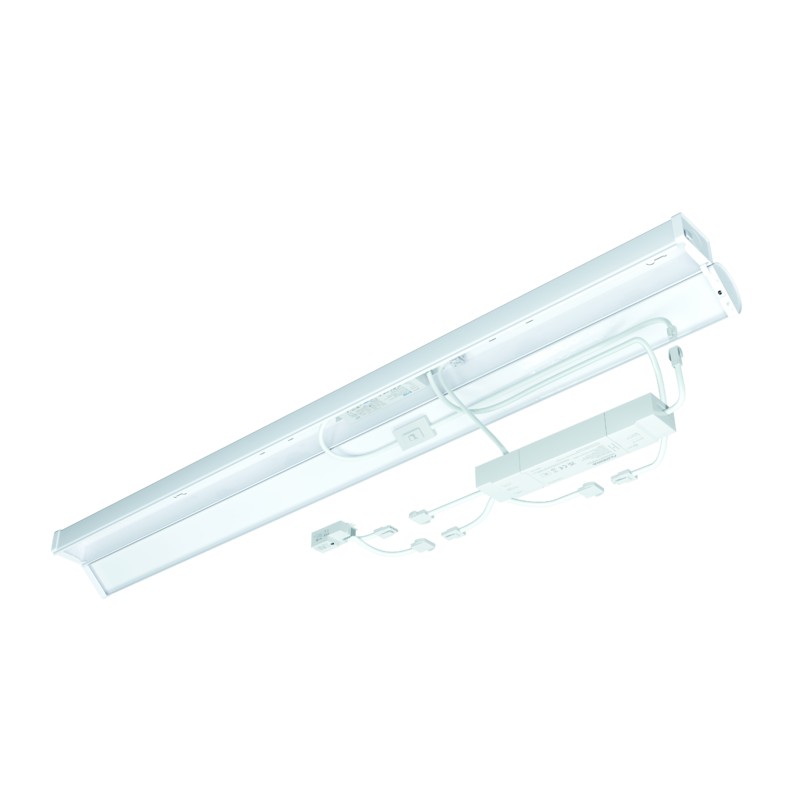

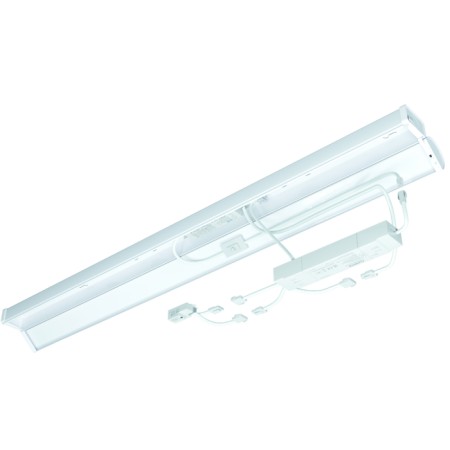

BatPacCWS - CL149901

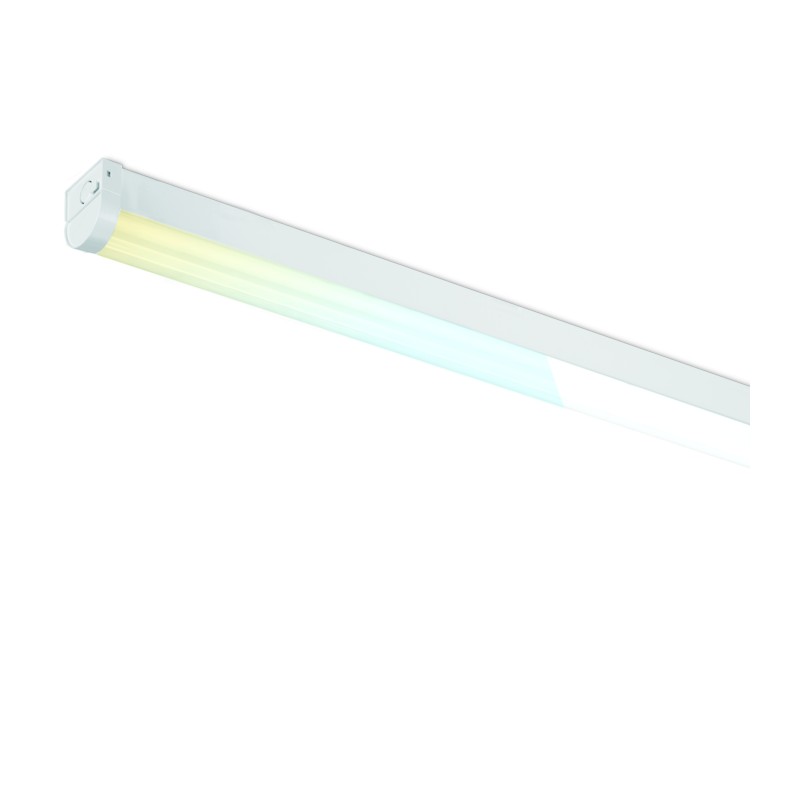

Colour & Wattage Switchable high-efficiency (150lm/W) LED Battens with opal diffuser for even and uniform light distribution.
Modular plug and play solution allows simple product extension on construction site by installing Microwave Sensor and/or Emergency Selftest Modules.
Integrated flicker-free non-dimmable driver with loop in loop out connector for simplified and fast installation, knockouts on both ends for cable entry.
2 Wattage and 3 Colour Selections available for ultimate flexibility in every application and perfect retrofit solution for single and twin fluorescent fittings.
Options: Microwave Sensor with 108° detection beam and range up to 4 meters. Emergency Pack 2.5W with Selftest function.
Modular plug and play solution allows simple product extension on construction site by installing Microwave Sensor and/or Emergency Selftest Modules.
Integrated flicker-free non-dimmable driver with loop in loop out connector for simplified and fast installation, knockouts on both ends for cable entry.
2 Wattage and 3 Colour Selections available for ultimate flexibility in every application and perfect retrofit solution for single and twin fluorescent fittings.
Options: Microwave Sensor with 108° detection beam and range up to 4 meters. Emergency Pack 2.5W with Selftest function.
CL149901
Data sheet
- Power (watts)
- 21/37
- Dimmable
- No
- Colour temperature
- 3000/4000/6500
- Lumens (lm)
- 2950-5550
- Lumens (lm/w)
- 150
- Colour (base)
- White
- Width (mm)
- 61
- Height (mm)
- 71
- Depth (mm)
- 1170
- Cutout diameter (mm)
- N/A
- Warranty (years)
- 5
- Mount Options
- Surface mounted
- Positional adjustment
- Fixed
- Lifetime class
- L80
- Lifetime class hours
- 50000
- IP Rating
- IP20
- IK Rating
- IK08
- Protection class
- D
- CRI
- 80
