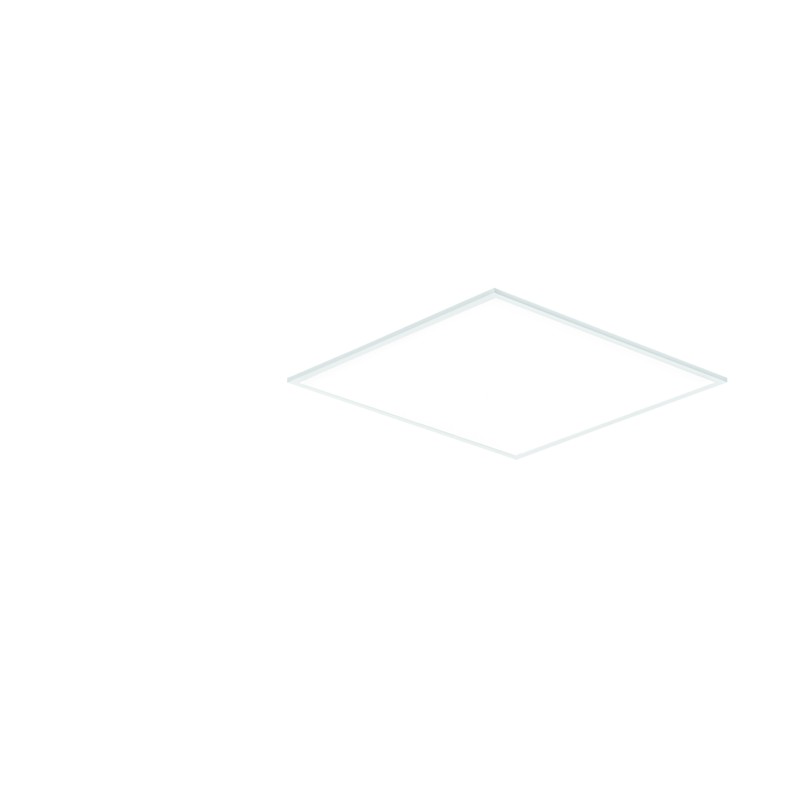

BackLitePro - LP152673

IP54 high-efficiency LED Backlit Panel with optical pattern PMMA lenses engineered for even and uniform light distribution.
Micro-prismatic diffuser provides excellent glare control with UGR19.
Suitable for installations in 15 and 24mm t-bar ceilings as well as ceiling suspension, surface mount or recess mount in plasterboard.
Flicker-free non-dimmable LED driver pre-wired for simplified and fast installation.



https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/257f33d5-60f5-4d4d-b8bd-633c85ae385a/class_ii_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/3ae270e9-8cfd-4547-9ce8-44e421dfba78/indoor_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/bb04ee10-6cff-4c02-9f95-39939faa792e/ip54_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/f409eeec-36eb-4206-8650-3dc8689453f5/ugr19_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/d75dfd94-a362-4d68-98d6-4408dd3f7c0d/non_dimmable_black.png
https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/3cda0a06-4f39-4a53-a446-80c3ed66fc21/90_beam_angle_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/6e33647e-3d69-4644-a512-061d480773d2/rg_0_black.png

LP152673

Data sheet

Power (watts)
29
Dimmable
NON
Colour temperature
3000
Lumens (lm)
4060
Lumens (lm/w)
140
Width (mm)
622
Height (mm)
32
Depth (mm)
622
Product Diameter (mm)
0
Warranty (years)
5
Type of use
Indoor
Mount Options
Recessed
Positional adjustment
Fixed
Lifetime class
L80
Lifetime class hours
50000
IP Rating
IP54
IK Rating
IK02
CRI
80
UGR rating
19
