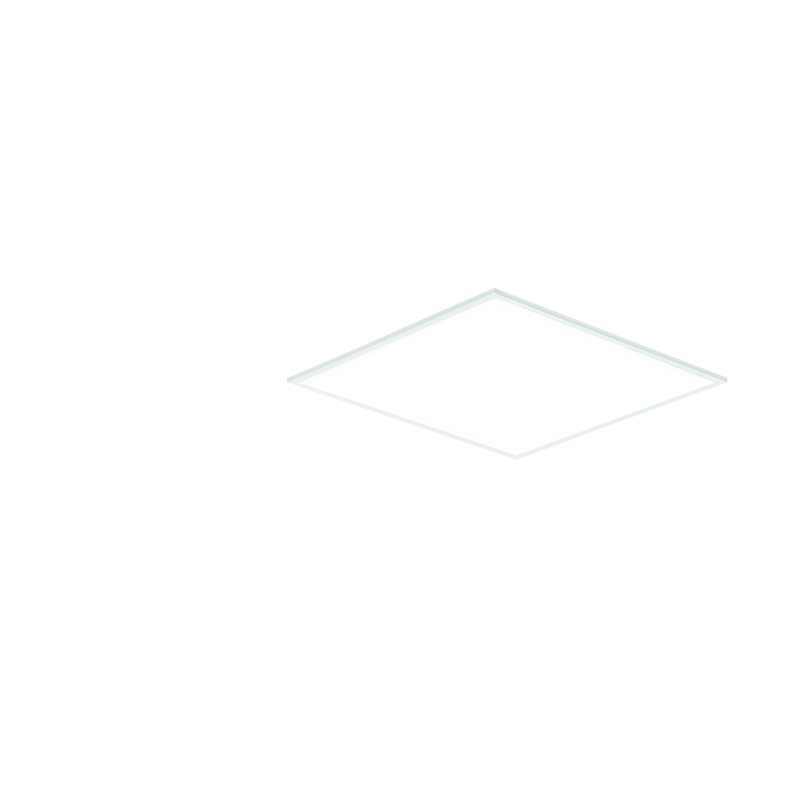

BackLitePro™ IP54 26W LED Panel UGR19 600x600mm 4000K Dali-Dimmable
IP54 high-efficiency LED Backlit Panel with optical pattern PMMA lenses engineered for even and uniform light distribution.
Suitable for installations in 15 and 24mm t-bar ceilings as well as ceiling suspension, surface mount or recess mount in plasterboard.
Flicker-free non-dimmable LED driver pre-wired with terminal box for simplified and fast through-wiring installation. Safety cable according to EN60598 included.
IP54 high-efficiency LED Backlit Panel with optical pattern PMMA lenses engineered for even and uniform light distribution.
Suitable for installations in 15 and 24mm t-bar ceilings as well as ceiling suspension, surface mount or recess mount in plasterboard.
Flicker-free non-dimmable LED driver pre-wired with terminal box for simplified and fast through-wiring installation. Safety cable according to EN60598 included.
LP149796
Data sheet
- Power (watts)
- 24
- Dimmable
- OUI
- Colour temperature
- 4000
- Lumens (lm)
- 3640
- Lumens (lm/w)
- 140
- Colour (base)
- White
- Width (mm)
- 595
- Height (mm)
- 32
- Depth (mm)
- 595
- Warranty (years)
- 5
- Type of use
- Indoor
- Mount Options
- Recessed
- Positional adjustment
- Fixed
- Lifetime class
- L80
- Lifetime class hours
- 50000
- IP Rating
- IP54
- IK Rating
- IK02
- Protection class
- D
- CRI
- 80
- UGR rating
- 19
