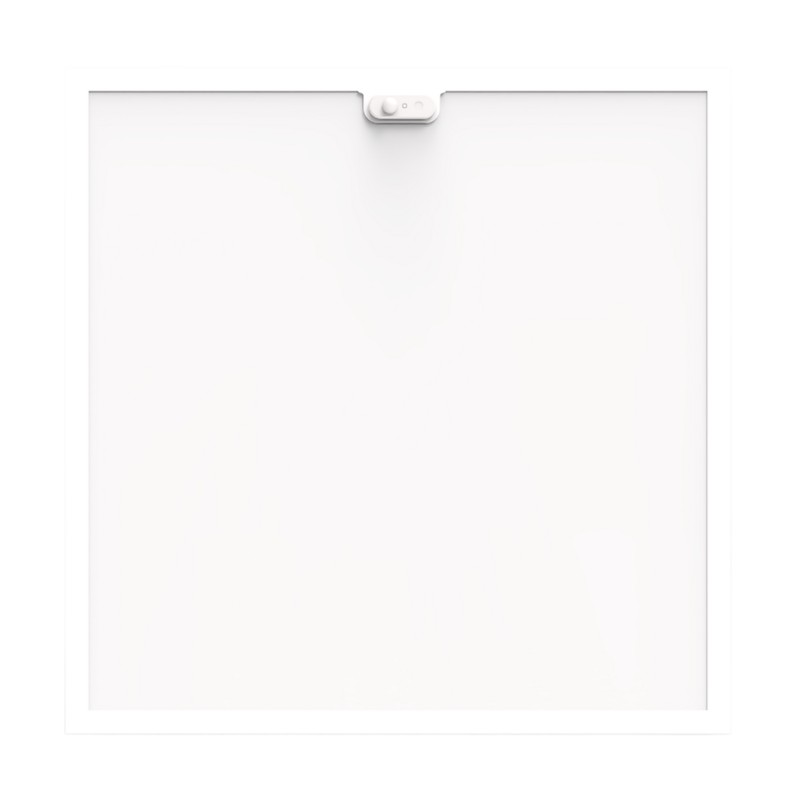

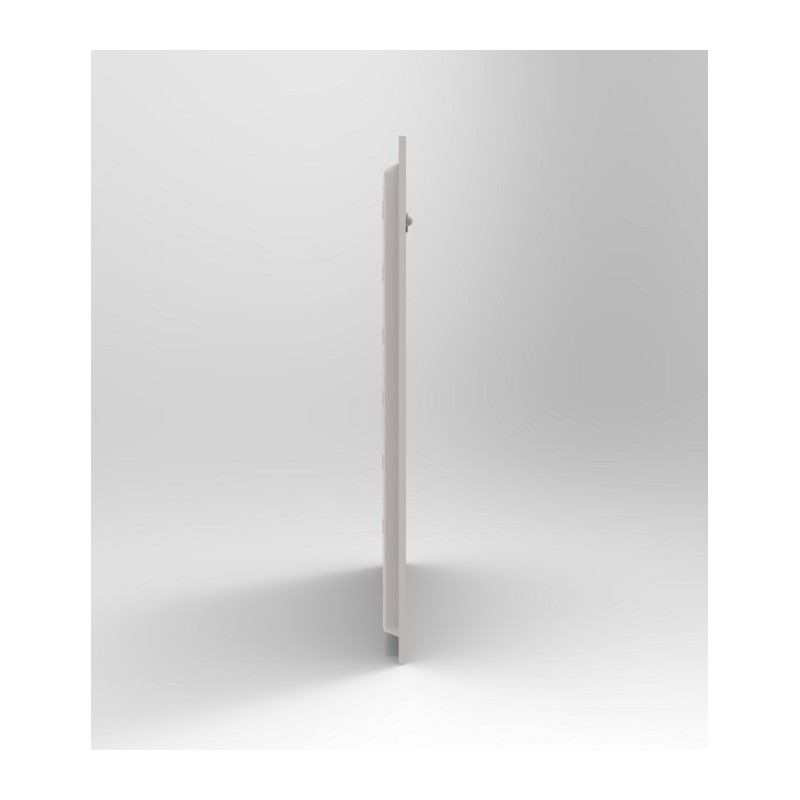

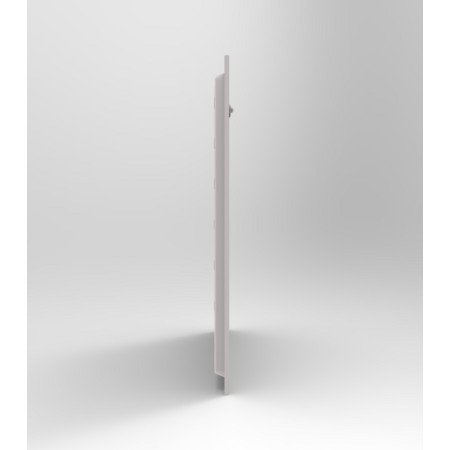

BACKLITE SENSE - LP163402
Wattage Switchable LED Backlit Panel with Integrated PIR Day-light-Harvesting Sensor designed for maximum energy savings inexisting buildings without modifiying the electrical infrastructure.
Programmable PIR daylight-harvesting sensor (via remote control) enables presence detection, daylight harvesting, and corridor function control. Adjustable settings include detection area, hold time, standby time, daylight threshold, and brightness scene control.
Micro-prismatic diffuser ensures excellent glare control with UGR <19.
Versatile installation options: suitable for 15 mm and 24 mm T-bar ceilings, as well as suspension, surface -mount, or recessed plasterboard installations.
Flicker-free LED driver pre -wired for simplified, fast installation and optimal use of daylight-harvesting feature.
Programmable PIR daylight-harvesting sensor (via remote control) enables presence detection, daylight harvesting, and corridor function control. Adjustable settings include detection area, hold time, standby time, daylight threshold, and brightness scene control.
Micro-prismatic diffuser ensures excellent glare control with UGR <19.
Versatile installation options: suitable for 15 mm and 24 mm T-bar ceilings, as well as suspension, surface -mount, or recessed plasterboard installations.
Flicker-free LED driver pre -wired for simplified, fast installation and optimal use of daylight-harvesting feature.
LP163402
Data sheet
- Power (watts)
- 22/24/26
- Colour temperature
- 4000
- Lumens (lm)
- 3520-4160
- Width (mm)
- 595
- Height (mm)
- 34
- Depth (mm)
- 595
- Warranty (years)
- 5
- Type of use
- Indoor
- Mount Options
- Recessed
- Positional adjustment
- Fixed
- Protection class
- E
- CRI
- 80
