ApexCWS - RT153953

ApexCWS - RT153953

ApexCWS - RT153953

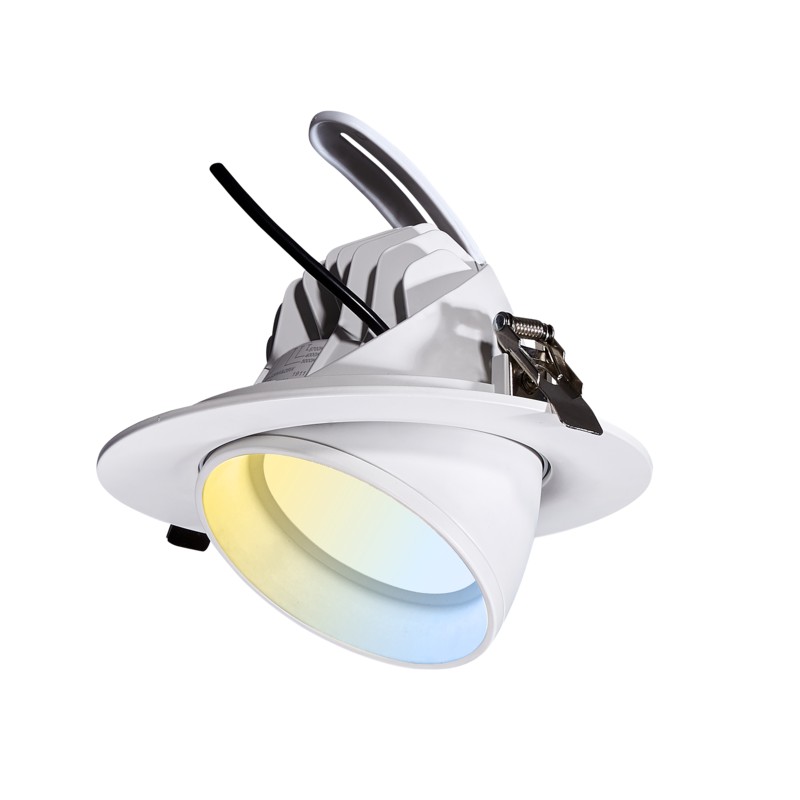

Colour & Wattage Switchable adjustable recessed Aluminium LED wallwasher designed to highlight displays and wall features. Perfect for applications that require high quality light output and superior colour rendering (CRI90).
Adjustable rotate and tilt angles to adapt to changing point of sales environments. Producing up to 3800 lumens from 38W LED, it is the perfect replacement for metal halide.
Rotates 350° with a horizontal adjustment of 50°. Opaque Polycarbonate diffuser with 90° beam angle.
Non-dimmable flicker-free driver pre-wired for ease of installation.

Reference RT153953

Data sheet

Dimmable: No
Colour temperature: 3000/4000/5700
Lumens (lm): 2900-3800
Lumens (lm/w): 96
Height (mm): 135
Cutout diameter (mm): 165
Product Diameter (mm): 195
Warranty (years): 5
Type of use: Indoor
Positional adjustment: Rotatable
Lifetime class: L80
Lifetime class hours: 50000
IP Rating: IP20
IK Rating: IK02
CRI: 80
UGR rating: 25

Download

rt153953_ldt.zip

Download (28.39KB)

apexcws_install_guide.pdf

Download (1.14MB)

rt153953_datasheet_en.pdf

Download (285.97KB)
