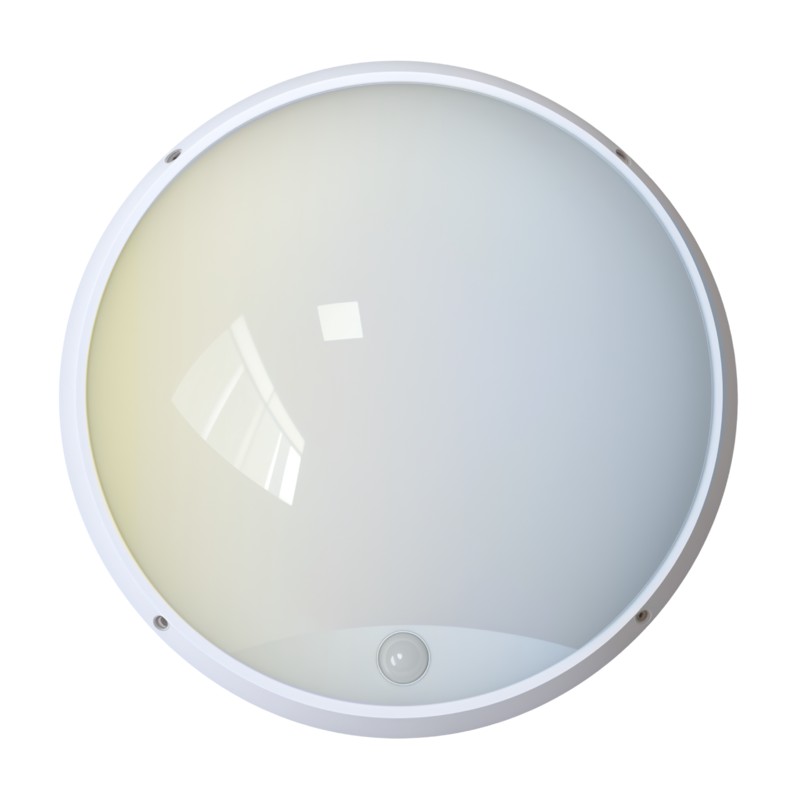

PIRES CWS - BH161422
Colour and wattage Switchable IP65 Bulkhead with integrated PIR sensor and opal polycarbonate IK10 diffuser for even and uniform light distribution provides best energy saving.
Integrated infrared detector sensor with daylight harvesting feature. When people enter its detection range and triggers, lights turn on. When people leave its detection area, the light will automatically turn off. Ambient illumination <10Iux-2000Iux adjustable, delay time 10s - 10min.
3 Colour Selections (3000K/3500K/4000K) available for ultimate flexibility in every application.
IP65 rated rear entry access wiring compartment enables quick and simple product installation.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from -25°C to +45°C.
Integrated infrared detector sensor with daylight harvesting feature. When people enter its detection range and triggers, lights turn on. When people leave its detection area, the light will automatically turn off. Ambient illumination <10Iux-2000Iux adjustable, delay time 10s - 10min.
3 Colour Selections (3000K/3500K/4000K) available for ultimate flexibility in every application.
IP65 rated rear entry access wiring compartment enables quick and simple product installation.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from -25°C to +45°C.
BH161422
Data sheet
- Power (watts)
- 20/24
- Colour temperature
- 3000/3500/4000
- Lumens (lm)
- 2400-2880
- Width (mm)
- 0
- Height (mm)
- 93
- Depth (mm)
- 0
- Product Diameter (mm)
- 355
- Warranty (years)
- 3
- Type of use
- Indoor / Outdoor
- Mount Options
- Surface mounted
- Positional adjustment
- Fixed
- Protection class
- D
- CRI
- 80
