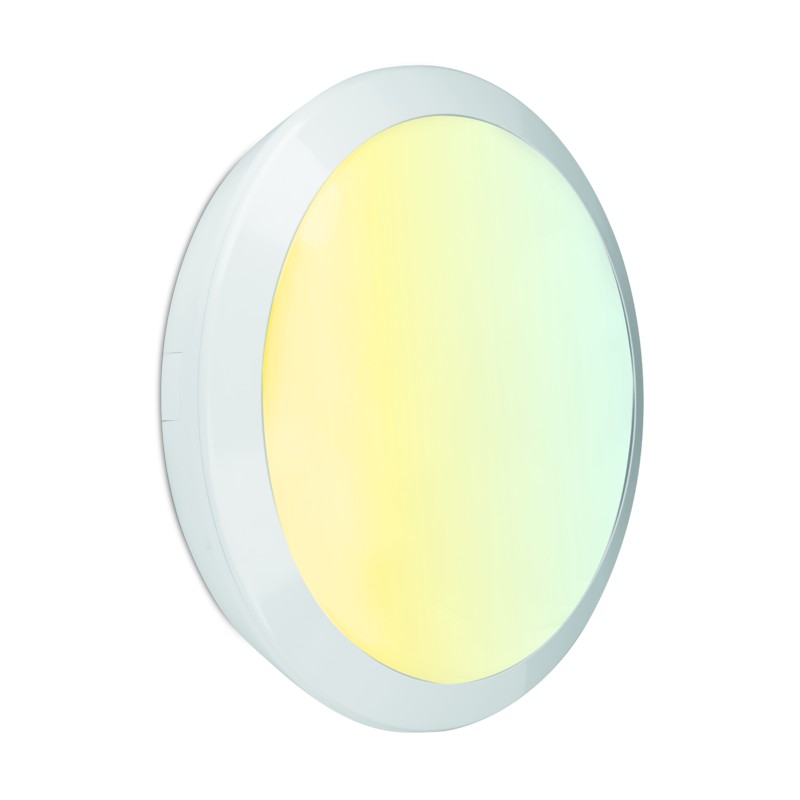

ORBITAL CSR - BH150358
Colour & Wattage Switchable IP66 Modular Plug&Play Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution.
Designed for modular plug and play product extension and maintenance. Plug-ready sensors, emergency kit, maintainable driver and light-engine available.
Integrated sensor base enables tool-free upgrade with either a microwave sensor for motion detection or a microwave sensor with corridor function for presence, daylight harvesting, and configurable hold time and light output control. 108° detection range up to 4 m.
IP66 rated rear and side entry access wiring compartment enable quick and simple through-wiring and product installation.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from -25°C to +45°C.
Designed for modular plug and play product extension and maintenance. Plug-ready sensors, emergency kit, maintainable driver and light-engine available.
Integrated sensor base enables tool-free upgrade with either a microwave sensor for motion detection or a microwave sensor with corridor function for presence, daylight harvesting, and configurable hold time and light output control. 108° detection range up to 4 m.
IP66 rated rear and side entry access wiring compartment enable quick and simple through-wiring and product installation.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from -25°C to +45°C.
BH150358
Data sheet
- Power (watts)
- 15/22/28
- Dimmable
- NO
- Colour temperature
- 3000/3500/4000
- Lumens (lm)
- 1800-3360
- Lumens (lm/w)
- 120
- Colour (base)
- White
- Width (mm)
- 0
- Height (mm)
- 105
- Depth (mm)
- 0
- Product Diameter (mm)
- 360
- Warranty (years)
- 5
- Type of use
- Indoor / Outdoor
- Mount Options
- Surface mounted / Wall mounted
- Positional adjustment
- Fixed
- Lifetime class
- L80
- Lifetime class hours
- 50000
- IP Rating
- IP66
- IK Rating
- IK10
- Protection class
- D
- CRI
- 80
- UGR rating
- 22
Suitable accessory
ORBITAL CSR - BH156770
Emergency Pack 2.5W Constant Wattage Selftest for OrbitalCSR™ BH150143 & BH150341
ORBITAL CSR - DR159245
Driver for Modular Bulkhead OrbitalCSR BH150341 & BH150358.
Output current adjustment (3 levels) using microswitches.
Output current adjustment (3 levels) using microswitches.
