OrbitalCSR - BH150150

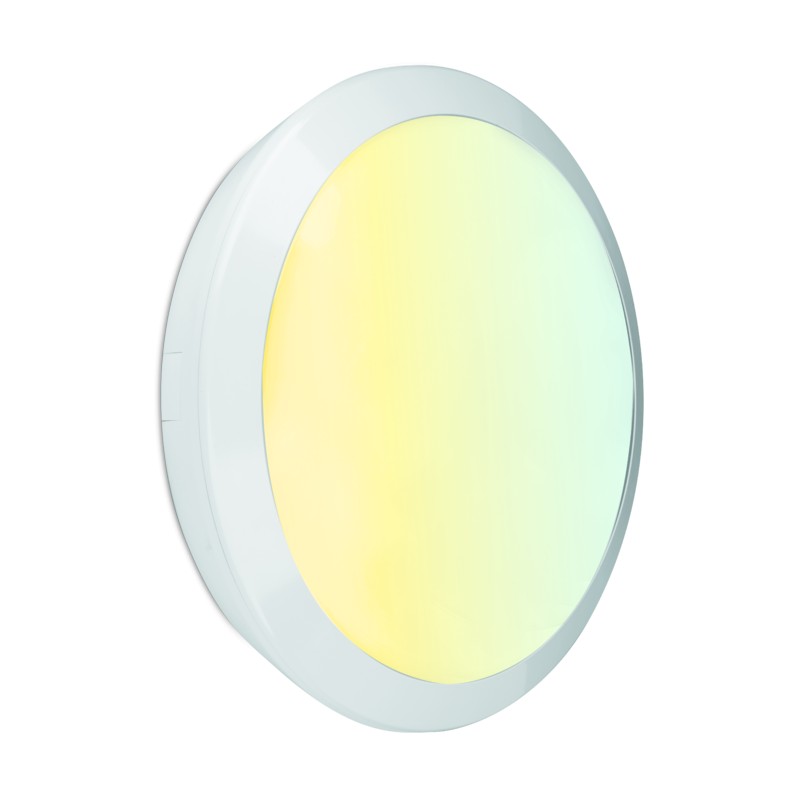

Colour & Wattage Switchable IP66 Modular Plug&Play Bulkhead with opal polycarbonate IK10 diffuser for even and uniform light distribution. Perfect for demanding wall and ceiling installations.
Modular product design enables simplified plug and play accessory addition and product maintenaince. Ready to plug Microwave, Emergency, and Driver packs are available as accessory.
IP66 rated rear and side entry access wiring compartment enable quick and simple through-wiring and product installation.
Microwave Sensor version with adjustable daylight harvesting function (25lux/off), 108° detection range up to 4 meter and hold time configurations from 5 seconds to 30 minutes available.
Suitable for ambient temperatures from -20°C to +45°C.
Modular product design enables simplified plug and play accessory addition and product maintenaince. Ready to plug Microwave, Emergency, and Driver packs are available as accessory.
IP66 rated rear and side entry access wiring compartment enable quick and simple through-wiring and product installation.
Microwave Sensor version with adjustable daylight harvesting function (25lux/off), 108° detection range up to 4 meter and hold time configurations from 5 seconds to 30 minutes available.
Suitable for ambient temperatures from -20°C to +45°C.
BH150150
Data sheet
- Power (watts)
- 10/14/20
- Dimmable
- NON
- Colour temperature
- 3000/3500/4000
- Lumens (lm)
- 1000-2400
- Lumens (lm/w)
- 120
- Colour (base)
- White
- Height (mm)
- 95
- Product Diameter (mm)
- 300
- Warranty (years)
- 5
- Type of use
- Indoor / Outdoor
- Mount Options
- Surface mounted / Wall mounted
- Positional adjustment
- Fixed
- Lifetime class
- L80
- Lifetime class hours
- 50000
- IP Rating
- IP66
- IK Rating
- IK10
- Protection class
- D
- CRI
- 80
- UGR rating
- 22
