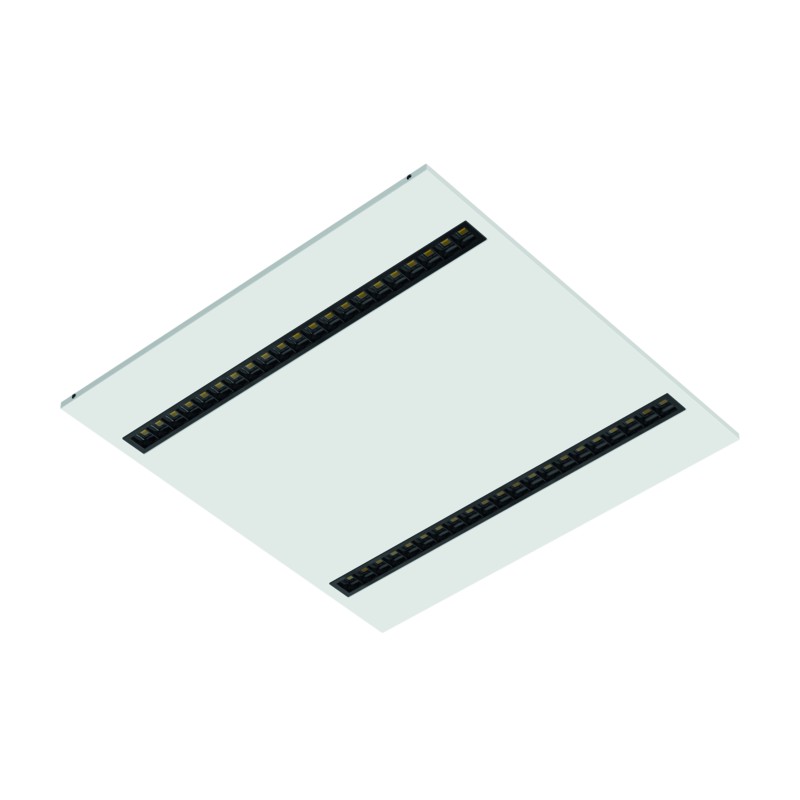

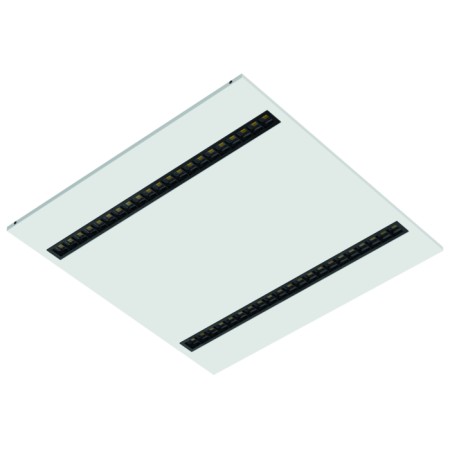

LOUVRE CWS - LP158590

Colour Switchable high-efficiency (up to 140Im/W) Modular LED Reflector Panel uses low glare effector technology to replicate the appearance of traditional direct/indirect luminaires.
Full product modularity for maximum flexiblibility and product maintainance. Select individual components to customize your product according to your project requirements.
High efficiency light modules, available in white, black and silver, with low glare reflector module significantly reduce glare and enhance visual comfort.
Different Colour Finishes of Backplate and reflector module available for maximum flexibility in every application.

Product Details
Attachments

Reference LP158590

Data sheet

Dimmable: NO
Colour temperature: 3000/3500/4000
Lumens (lm): 2100
Lumens (lm/w): 130
Width (mm): 37.5
Height (mm): 17
Depth (mm): 560
Warranty (years): 5
Type of use: Indoor
IP Rating: IP20
CRI: 80
UGR rating: 19

Download

Suitable accessory

LOUVRE CWS - DR158620

0-10V Driver

E-LUMI - DR159412

The DR159412 driver is a dimmable DALI-2 and PushDIM driver with adjustable constant current. It is supplied complete with a cable for connection to the luminaire.
Dimming range from 1 to 100%.
No flicker and smooth dimming in all light conditions.
Output current adjustment ( 10 levels ) by means of micro-switches.
Support CBS , central emergency application.
Independent cable clamps ( inlet / outlet ).
