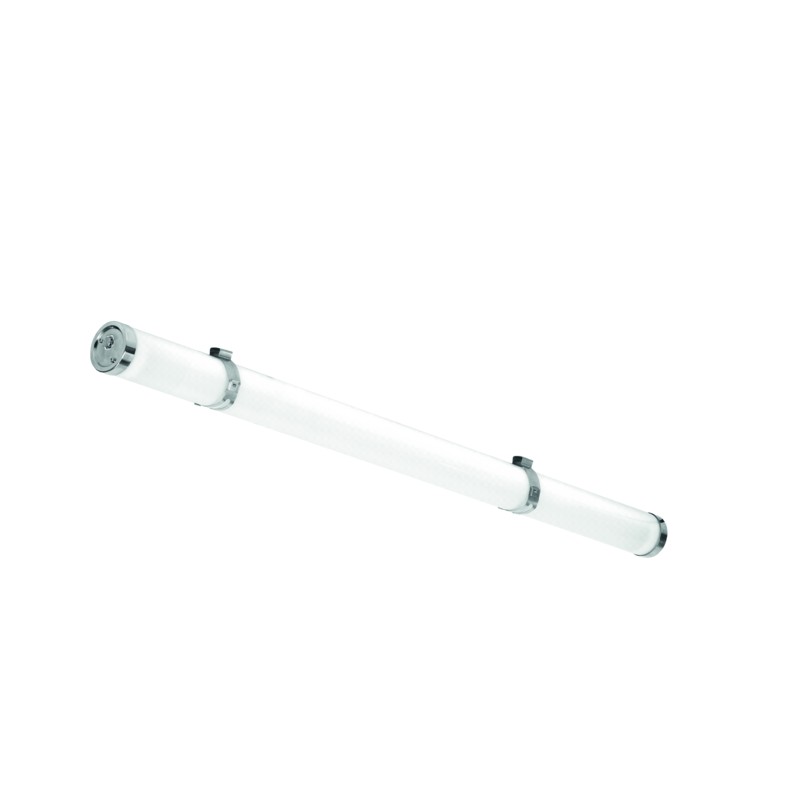

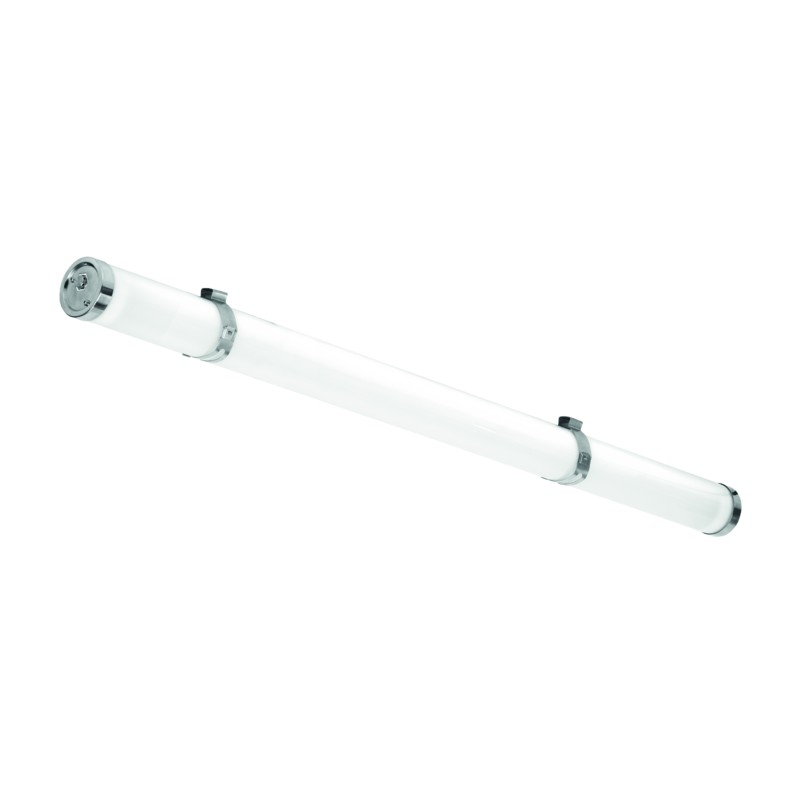

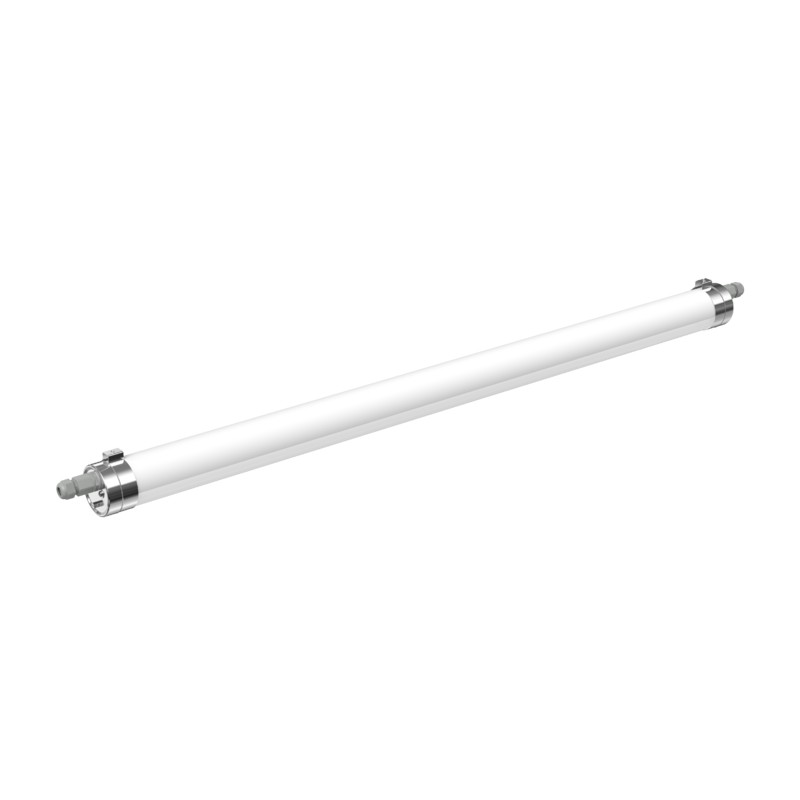

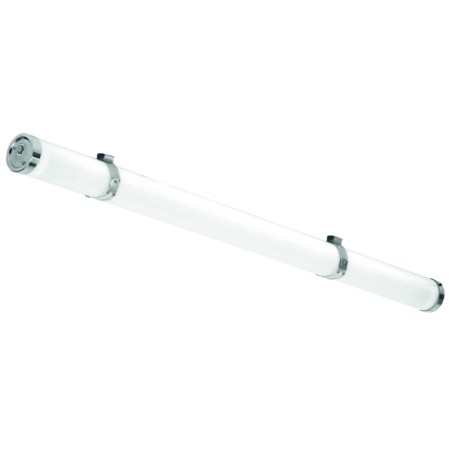

High-Efficiency (150 lm/W) IP69K Corrosion-Resistant Linear Batten with opal UV-resistant polycarbonate diffuser, IK10 rated for maximum impact resistance.
IP69K rated and designed for environments requiring heavy wash-down cleaning.
Supplied with 316 stainless steel end-caps and mounting brackets for simplified surface installation.

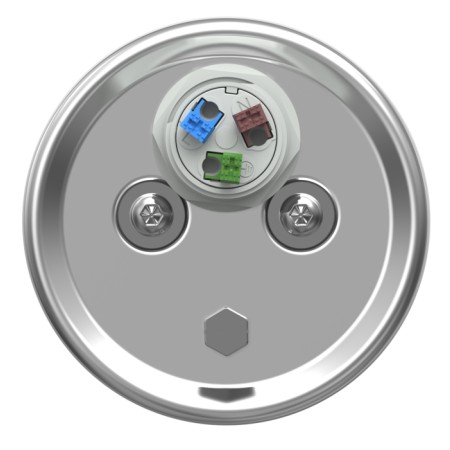

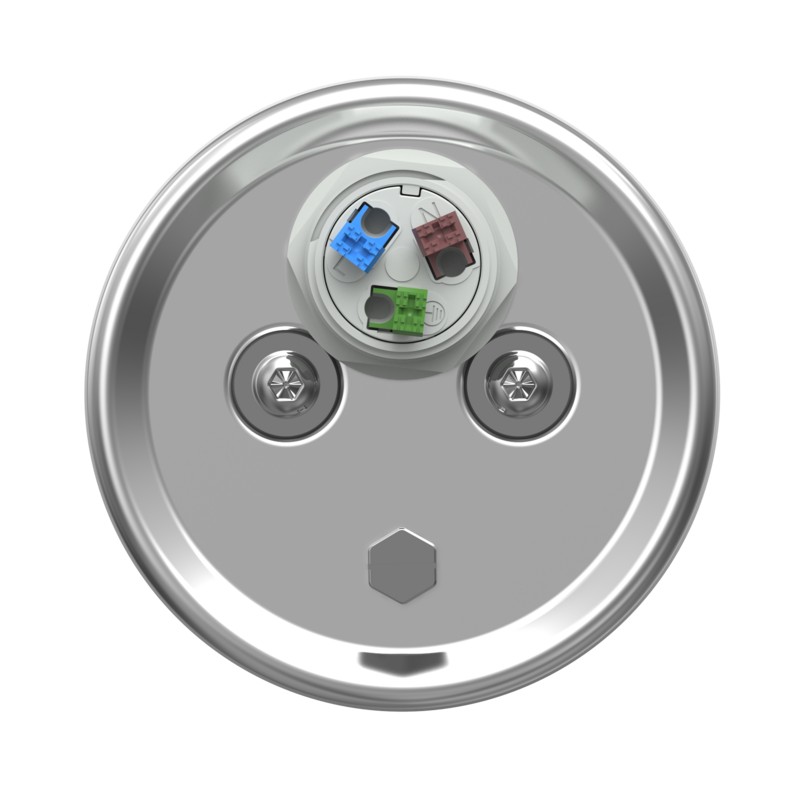

Integrated flicker-free, non-dimmable driver with IP69K cable glands on both ends and 3pol push terminals for safe, rapid through-wiring.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from –20 °C to +45 °C.
IP69K rated and designed for environments requiring heavy wash-down cleaning.
Supplied with 316 stainless steel end-caps and mounting brackets for simplified surface installation.
Integrated flicker-free, non-dimmable driver with IP69K cable glands on both ends and 3pol push terminals for safe, rapid through-wiring.
UV resistant and suitable for installations in unprotected outdoor areas with ambient temperatures from –20 °C to +45 °C.
AC153250
Data sheet
- Power (watts)
- 30
- Dimmable
- NON
- Colour temperature
- 4000
- Lumens (lm)
- 4500
- Lumens (lm/w)
- 150
- Colour (base)
- White
- Depth (mm)
- 1306
- Product Diameter (mm)
- 73
- Warranty (years)
- 5
- Type of use
- Indoor / Outdoor
- Mount Options
- Surface mounted / Wall mounted
- Positional adjustment
- Fixed
- Lifetime class
- L80
- Lifetime class hours
- 50000
- IP Rating
- IP69k
- IK Rating
- IK10
- Protection class
- D
- CRI
- 80
- UGR rating
- 35
