CurveeCWS - DL150228

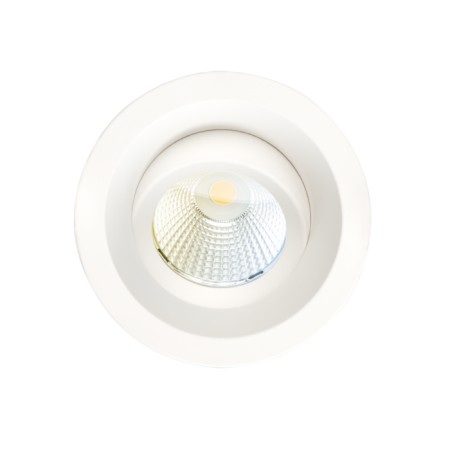

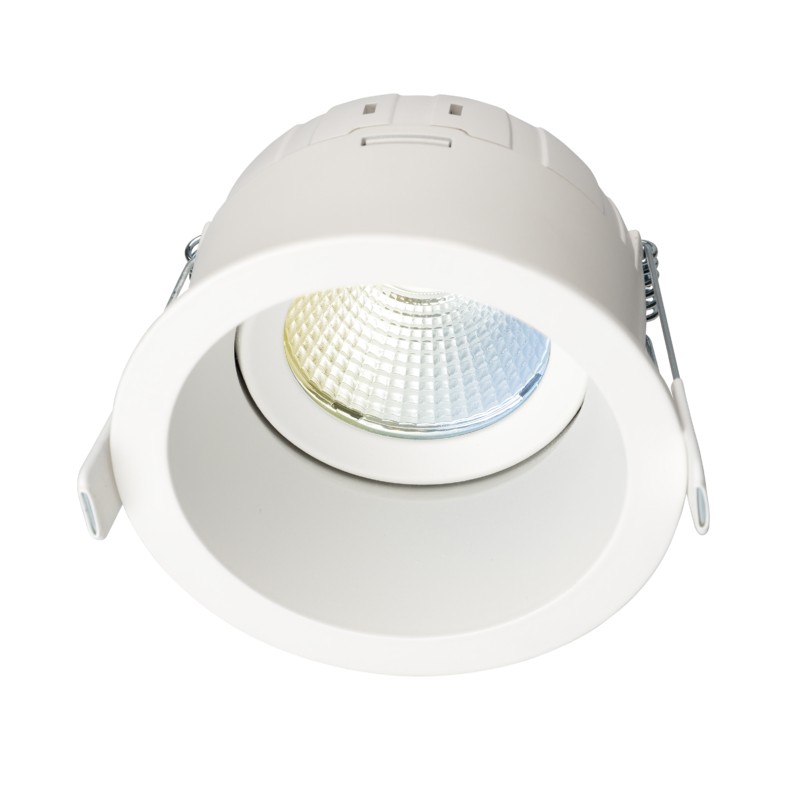

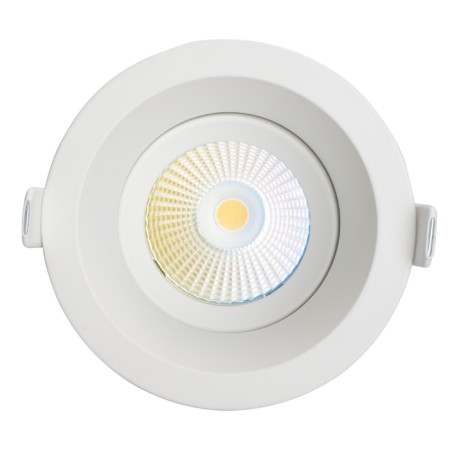

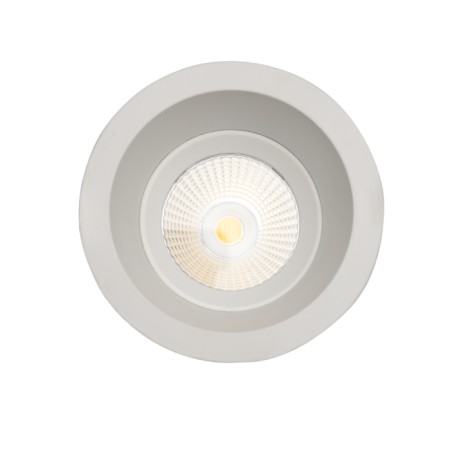

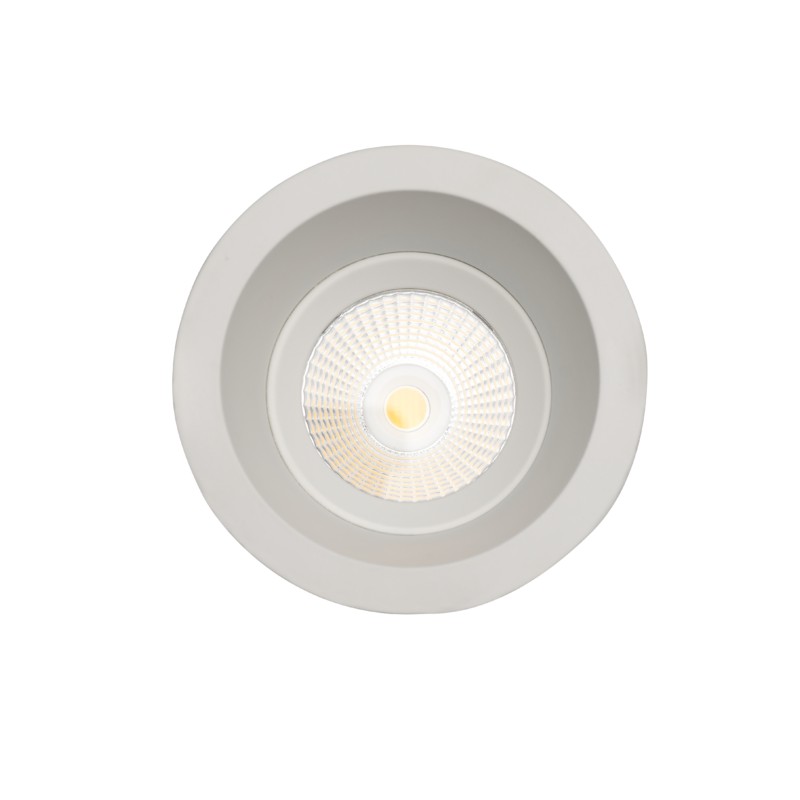

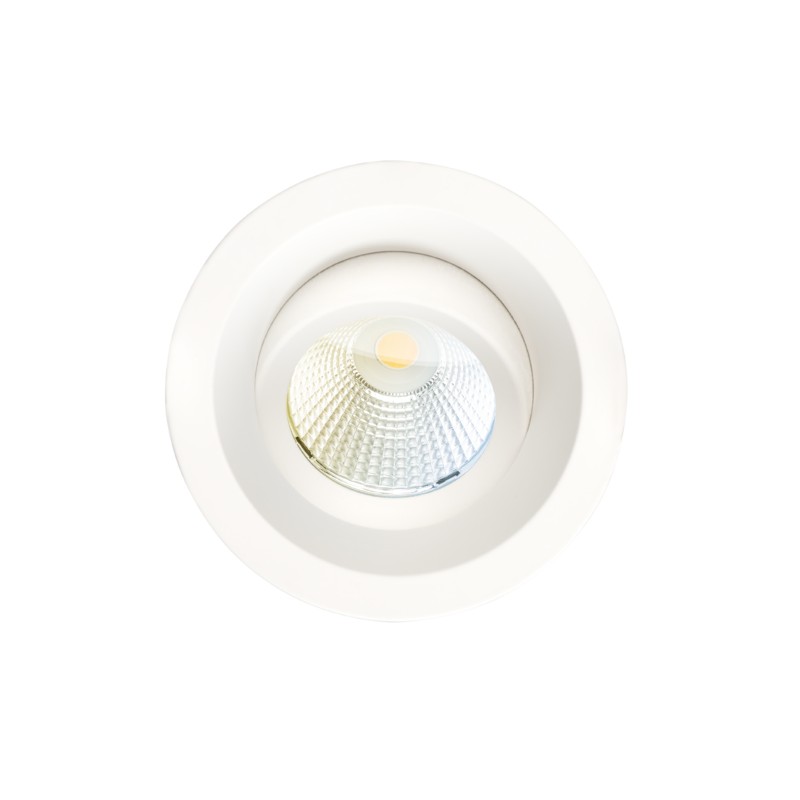

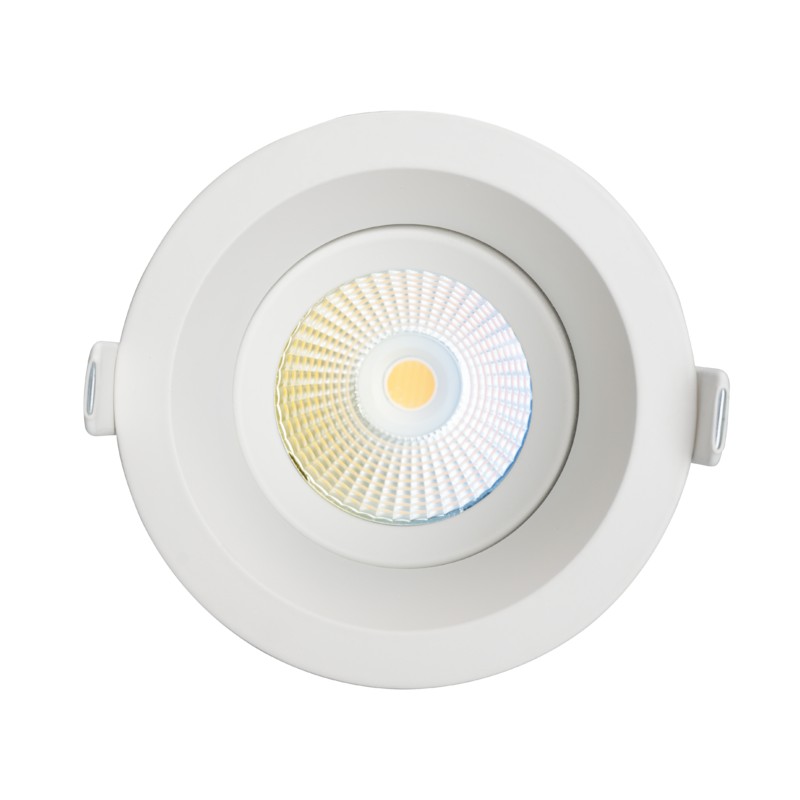

Colour & Wattage Switchable IP44 Adjustable Low Glare Triac dimmable Aluminium LED Baffle Downlight White.
Baffled 30° horizontal adjustable design with the light source recessed to reduce glare. CRI90 for superior colour representation.
Rapid tool-free installation through loop in / loop out push-fit wiring terminals with strain relief.
Downlight and driver are insulation coverable without the need of additional accessory or insulation cut-out.
Baffled 30° horizontal adjustable design with the light source recessed to reduce glare. CRI90 for superior colour representation.
Rapid tool-free installation through loop in / loop out push-fit wiring terminals with strain relief.
Downlight and driver are insulation coverable without the need of additional accessory or insulation cut-out.
DL150228
Data sheet
- Power (watts)
- 7,5/10/11,5
- Dimmable
- OUI
- Colour temperature
- 2700/3000/4000
- Lumens (lm)
- 600-950
- Lumens (lm/w)
- 88
- Colour (base)
- White
- Width (mm)
- 0
- Height (mm)
- 74
- Depth (mm)
- 0
- Cutout diameter (mm)
- 85
- Product Diameter (mm)
- 95
- Warranty (years)
- 5
- Type of use
- Indoor
- Mount Options
- Recessed
- Positional adjustment
- Swivelling
- Lifetime class
- L80
- Lifetime class hours
- 50000
- IP Rating
- IP44
- IK Rating
- IK02
- Protection class
- F
- CRI
- 90
- UGR rating
- 19
