BACKLITE PRO CWS - LP157876
    BACKLITE PRO CWS - LP157876

BACKLITE PRO CWS - LP157876

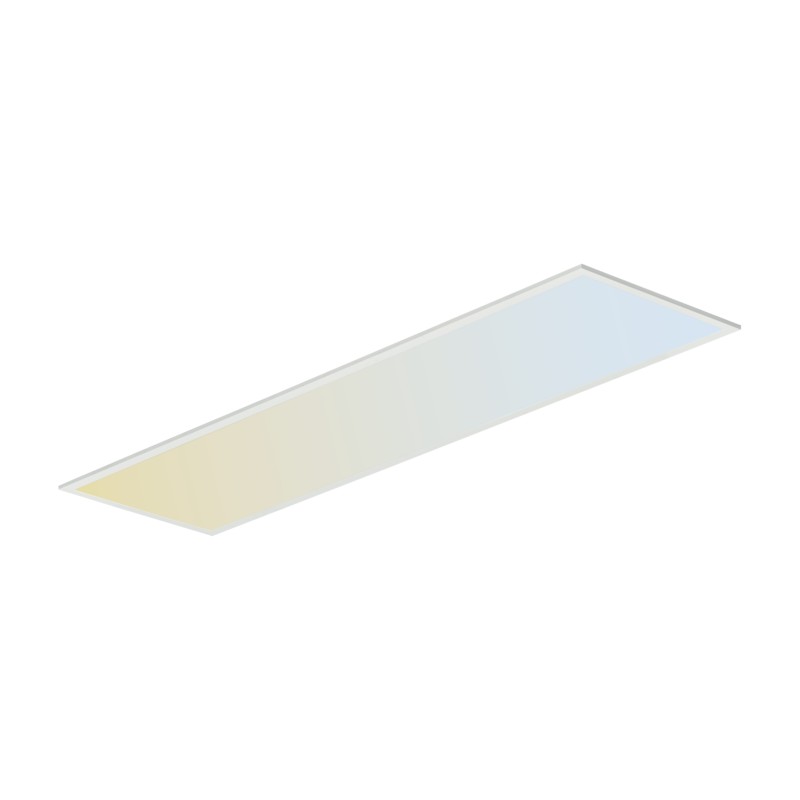

Colour & Wattage Switchable IP54 high-efficiency LED Backlit Panel with optical pattern PMMA lenses engineered for even and uniform light distribution.
Microprismatic diffuser provides excellent glare control with UGR <19.
Suitable for installations in 15 and 24mm t-bar ceilings as well as ceiling suspension, surface mount or recess mount in plasterboard.
Flicker-free non-dimmable LED driver pre -wired with terminal box for simplified and fast through-wiring installation. Safety cable according to EN60598 included.
4 Wattage and 3 Colour Selections available for ultimate flexibility in every application.


https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/257f33d5-60f5-4d4d-b8bd-633c85ae385a/class_ii_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/3ae270e9-8cfd-4547-9ce8-44e421dfba78/indoor_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/bb04ee10-6cff-4c02-9f95-39939faa792e/ip54_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/f409eeec-36eb-4206-8650-3dc8689453f5/ugr19_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/2585bb5d-9c8a-4057-9f45-adb0834acfd8/colour_wattage_switchable_black.png
https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/d75dfd94-a362-4d68-98d6-4408dd3f7c0d/non_dimmable_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/6e33647e-3d69-4644-a512-061d480773d2/rg_0_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/3cda0a06-4f39-4a53-a446-80c3ed66fc21/90_beam_angle_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/a783d471-f4a7-4a18-9a83-83fa7953f681/l80_b20_50000_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/769f404a-c235-468e-9cd8-7e760cb2599e/3000k_4000k_colour_switchable_balck.png
https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/b71c76a4-5809-4260-89a7-7e7096e623fe/5year_warranty_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/d6de5a73-a473-4524-a539-af40700cc2d7/cri80_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/b60d5140-4682-4693-9cf1-93877ce5c089/ik02_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/8a469910-5238-433a-b424-df966035bbf5/650_glowwire_black.png
https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/d730c312-bcbb-4c0e-bfa4-eade3ac96ffc/coverable_black.png

LP157876

Data sheet

Power (watts)
20/24/28/32
Dimmable
NO
Colour temperature
3000/4000
Lumens (lm)
3000-4800
Lumens (lm/w)
140
Width (mm)
295
Height (mm)
32
Depth (mm)
1195
Warranty (years)
5
Type of use
Indoor
Mount Options
Recessed
Positional adjustment
Fixed
Lifetime class
L80
Lifetime class hours
50000
IP Rating
IP54
IK Rating
IK07
CRI
80
UGR rating
19

Suitable accessory

E-LUMI - DR159429

E-LUMI - DR159429

The DR159429 driver is a dimmable DALI-2 and PushDIM driver with adjustable constant current. It is supplied complete with a cable for connection to the luminaire.
Dimming range from 1 to 100%.
No flicker and smooth dimming in all light conditions.
Output current adjustment ( 10 levels ) by means of micro-switches.
Support CBS , central emergency application.
Independent cable clamps ( inlet / outlet ).

https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/93868b5d-03ba-45a6-99dc-df628b63ab67/220_240v_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/257f33d5-60f5-4d4d-b8bd-633c85ae385a/class_ii_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/c9bb1a79-3c42-4e28-91e5-edb45bf2ad1c/ip20_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/3ae270e9-8cfd-4547-9ce8-44e421dfba78/indoor_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/963037d3-0617-4553-aae4-4802be488cdf/dimmable_black.png
https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/b97317b6-5cd3-45b6-bece-0a9cf8563be7/non_coverable_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/b71c76a4-5809-4260-89a7-7e7096e623fe/5year_warranty_black.png

Driver 1-10V - DR159481

Driver 1-10V - DR159481

The DR159481 driver is a dimmable 1-10V driver with adjustable constant current. It is supplied complete with a cable for connection to the luminaire.
Dimming range from 5 to 100%.
No flicker and smooth dimming in all light conditions.
Output current adjustment ( 10 levels ) by means of micro-switches.
Support CBS , central emergency application.
Independent cable clamps ( inlet / outlet ).

https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/93868b5d-03ba-45a6-99dc-df628b63ab67/220_240v_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/257f33d5-60f5-4d4d-b8bd-633c85ae385a/class_ii_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/c9bb1a79-3c42-4e28-91e5-edb45bf2ad1c/ip20_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/3ae270e9-8cfd-4547-9ce8-44e421dfba78/indoor_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/b3082537-ea63-49a9-9d47-b2bc28db36dd/1_10_dimmable_black.png
https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/b97317b6-5cd3-45b6-bece-0a9cf8563be7/non_coverable_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/b71c76a4-5809-4260-89a7-7e7096e623fe/5year_warranty_black.png
