BackLite CS - LP157081

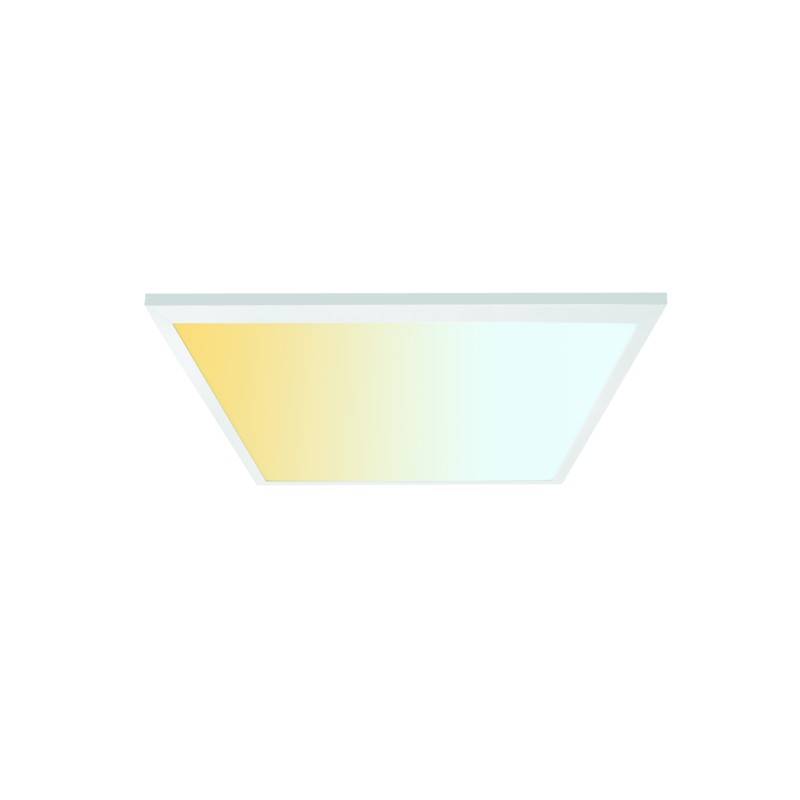

Colour Selectable Eco LED Backlit Panel with frameless steel body and optical pattern PMMA lenses engineered for even and uniform light distribution offer best value for money.
Microprismatic diffuser provides excellent glare control with UGR<19.
Suitable for installations in 15 and 24mm t-bar ceilings as well as ceiling suspension, surface mount or recess mount in plasterboard.
Supplied with flicker-free non-dimmable embedded driver and 320mm cable with 3pol terminal box for simplified and fast installation.
Microprismatic diffuser provides excellent glare control with UGR<19.
Suitable for installations in 15 and 24mm t-bar ceilings as well as ceiling suspension, surface mount or recess mount in plasterboard.
Supplied with flicker-free non-dimmable embedded driver and 320mm cable with 3pol terminal box for simplified and fast installation.
LP157081
Data sheet
- Power (watts)
- 36
- Dimmable
- No
- Colour temperature
- 3000/4000
- Lumens (lm)
- 3300-3600
- Lumens (lm/w)
- 100
- Colour (base)
- White
- Width (mm)
- 595
- Height (mm)
- 30
- Depth (mm)
- 595
- Cutout diameter (mm)
- N/A
- Product Diameter (mm)
- 0
- Warranty (years)
- 3
- Type of use
- Indoor
- Mount Options
- Recessed
- Positional adjustment
- Fixed
- Lifetime class
- L70
- Lifetime class hours
- 30000
- IP Rating
- IP20
- IK Rating
- IK06
- Protection class
- F
- CRI
- 80
- UGR rating
- 19
